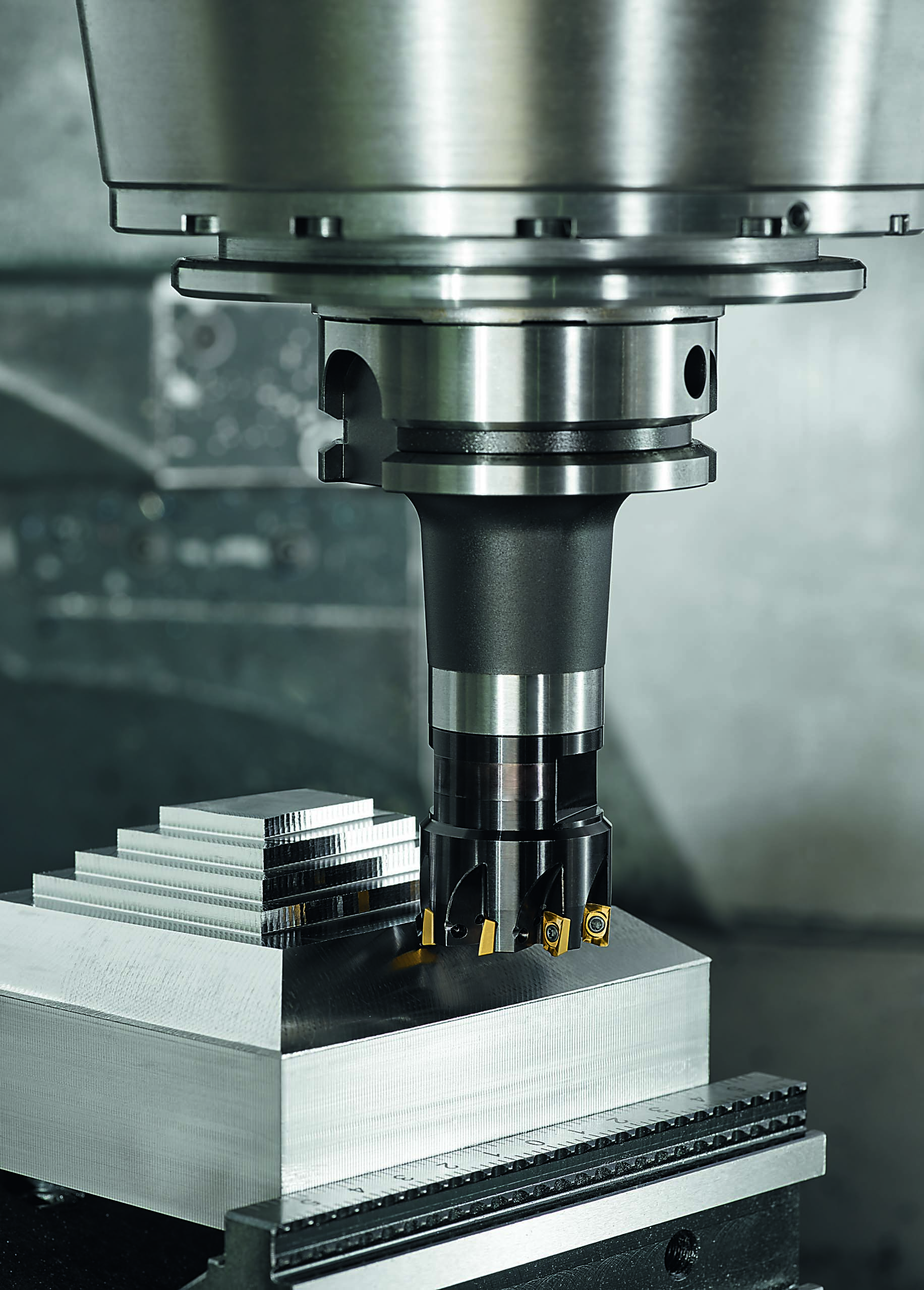

All about facemilling

Historically, facemilling has been considered one of the most basic machining functions. A typical trade show demonstration would feature a cutter in a deep depth of cut slowly advancing through a workpiece in a shower of chips. Today, thanks to harder, more expensive materials and lighter, more agile machining centers, the equation has changed, and toolmakers are responding.

New Tools for New Machines

“One of the primary factors driving the change in facemilling tooling has been the machines themselves,” said Jan Andersson, director of product management for indexable inserts at YG-1 Tool (USA) Co. in Vernon Hills, Illinois. “Formerly, low-speed, high-torque machining centers were capable of high metal removal rates at moderate speed. At present, a new generation of machining centers are operated at lower torque but higher speeds, and manufacturers are not only concerned with higher removal rates but maybe even more so with achieving a precise cut and high-quality finish.”

Another major consideration impacting manufacturers and tooling suppliers involves employees.

“In the past, major manufacturing facilities had a qualified manufacturing engineer in charge of every major line,” Andersson said. “It was the engineer’s responsibility to specify the tooling to be used for specific workpieces. Also, individuals operating the machines were skilled machinists or — for the more complex parts — qualified tool and die makers. At present, there might be one manufacturing engineer for an entire plant, and machine operators have taken the place of the machinists, so both shops and plants are more dependent on recommendations from tooling manufacturers with regard to tool specification. Because of this, we have to add value to our tooling and change how we think about and design tools so that they are capable of simultaneously roughing and finishing and to match the appropriate tool to the material being facemilled.”

Recommendations have to take into account macrofactors and microfactors, including the proper grade and edge, as well as chip breaking and evacuation. To accomplish this, tool manufacturers define specific inserts with the appropriate substrate and coating combination for particular materials.

A ceramic button cutter is shown. Image courtesy of NTK Cutting Tools USA

The influence of newer machine configurations on facemilling tooling also is observed by Luke Pollock, product manager at Walter USA LLC in Waukesha, Wisconsin.

“In response to market demand,” he said, “the current generation of machines is less expensive and lighter in weight. They’re also more agile and capable of faster and more dynamic machining, requiring a lighter depth of cut. Due to this, tooling typically requires a low lead angle — 15 degrees to 17 degrees — and a high advance per tooth.”

Although advanced carbides, substrates and coatings continue to dominate the market for facemilling tooling, nontraditional materials are making inroads. Ceramic insert manufacturer NTK Cutting Tools USA is in Wixom, Michigan, and its Japan-based parent company is a descendant of the venerable Noritake Co. Ltd., a manufacturer of fine china and dinnerware. Steven Howard, marketing and engineering manager of the cutting tool division, believes that the advent of ceramic tooling has created an industrywide need for education on the physics of metal removal.

“The new material blends, including hardened and stainless steels, Inconels and other exotic alloys, require a new approach,” he said. “Carbide is no longer enough as it has reached its maturity level. Coatings can help, but there is a limit to their effectiveness due to the heat and abrasiveness generated in the machining of hard metals. Ceramics, on the other hand, are seven times harder than carbide and are 100% ground, which makes it possible to generate the correct geometry.”

Incorporating ceramic tooling requires a different methodology than conventional carbide. For instance, when ceramic is used on heat-resistant alloys, Howard said it is critical to define a toolpath that does not come off the part, because tool life can decrease by 3% if the insert leaves the part.

Although ceramic tooling has a reputation for being brittle, he said that is changing.

“The new grades that we manufacture are tougher,” Howard said, “so the edge can be sharper. Only a honed edge can be used on positive-rake designs, and this is a significant advantage in that it disperses heat. This is especially important in facemilling, which has today become largely a finishing process.”

Evolving Materials Demand Specific Approaches

Where new materials are concerned, customer demand for tooling can vary widely.

“The aerospace industry demands a very high removal rate for titanium and Inconel,” Pollock said. “Only about 5% of the average workpiece results in a finished part; 90% goes off in chips. We call that the buy-to-fly ratio.”

In other instances, especially when a manufacturer has developed a proprietary material, the expense warrants a more conservative approach.

“Our involvement with our customers has to be extremely intense in specifying or developing the tooling required for proprietary alloys,” Andersson said. “One of the problems is the fact that customers may not be able to divulge the nature of the material that we are working with, which makes it difficult to develop the proper tooling strategy. As more shops have moved from a high-production emphasis to a high-mix, low-volume position, we have had to work with them on such areas as inventory management and setup sheets. Our objective is always to deliver consistent performance, and that requires better inventory management on the customer’s part. This is especially true in tool vending, where we suggest labeling the tool with the exact job number rather than a more general description. By so doing, the operator can make the right decision every time.”
