SILICON-NITRIDE INSERTS.

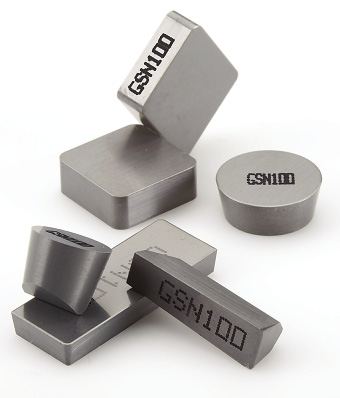

Greenleaf Corp.’s GSN100 silicon-nitride inserts are for machining cast iron parts, such as cylinder blocks and heads, gear cases and housings, and brake drums and rotors. Blended with proprietary toughening agents, the inserts can achieve cutting speeds up to 5,000 sfm (1,525 m/min.) when single-point turning, grooving or milling, according to the company. The inserts can be ordered with special geometries and edge preparations for specific applications. (800) 458-1850.
Greenleaf Corp. www.greenleafcorporation.com
BLIND-HOLE TAP.
The Walter Prototyp Paradur Short Chip HT blind-hole tap from Walter USA LLC reportedly increases process reliability and quality when tapping long-chipping, high-tensile-strength steel. The tap prevents the coiled swarf, or “bird’s nest,” from forming when threading, according to the company. The tool has a 15° helix angle for enhanced chip evacuation. This reduces to a 9° helix angle in the lower section of the tool, which creates short chips when combined with a ground rake in the chamfer. The tool is also suitable for tapping low-tensile-strength materials. (800) 945-5554.
Walter USA LLC www.walter-tools.com/us
MINIATURE DRILLS.

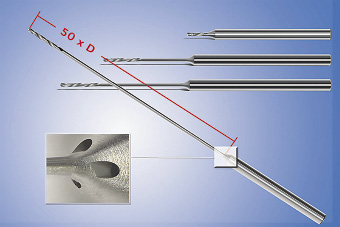

Mikron Corp. Monroe’s CrazyDrill Flex solid-carbide drills have a flexible center between the drill section and the clamping shank, which provides elasticity. The through-coolant drills start at 0.3mm (0.012 ") in diameter, increasing in 0.05mm (0.002 ") increments for standard tools and 0.01mm (0.0004 ") increments for specials, and are for drilling up to 50 diameters deep. In addition to conventional cutting fluid, users can apply a lubricant that combines air, oil and mist. (203) 261-3100.
Mikron Corp. Monroe www.mikron.com
PVD COATING FACILITY.

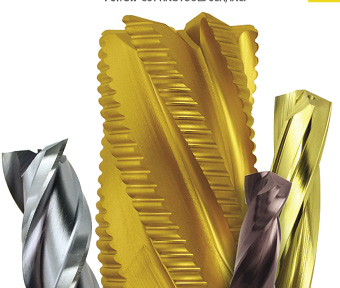

Eifeler-Coating Services, the in-house PVD coating facility for PCT/GW Cutting Tools USA Inc. (Precision Cutting Tools USA Inc./Günther Wirth), received a certificate of registration for ISO 9001:2008 on March 6, 2013, from QAS International. The certificate is No. 3597US. The industries the companies serve include aerospace, automotive and medical. (800) 334-9373.
PCT/GW Cutting Tools USA Inc. www.pctcutters.com
DRILL.

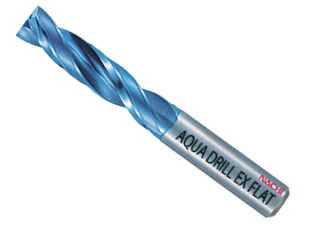

Nachi America Inc.’s Aqua Drill EX Flat is for drilling inclined and curved workpiece surfaces. The tool is made from submicron-grain carbide and is available in through-coolant and non-through-coolant styles for drilling 3 and 5 diameters deep. Extended-length drills are also available. The drill is suitable for flat-bottom applications, such as those found in the automotive and oil and gas industries. To improve heat and wear resistance, the company offers its Aqua EX TiAlN and AlTiCR coatings. (888) 340-8665.
Nachi America Inc. www.nachiamerica.com
CYLINDRICAL GRINDER.
United Grinding Technologies Inc.’s Studer S33 CNC universal ID/OD cylindrical grinder has a modular design and digital control and drive systems. The center height is 175mm (6.9 "), between-centers grinding length is 650mm (25.6 ") or 1,000mm (39.4 "), chuck capacity between centers is 80 to 120 kg (176.4 to 264.6 lbs.) and OD wheel size is 500mm × 63mm × 203mm (19.7 "×2.5 "×8.0 "). The machine offers grinding speeds up to 120,000 rpm. The basic wheelhead can be indexed at 0° or 30° for straight and angular plunge grinding. (937) 859-1975.
United Grinding Technologies Inc. www.grinding.com
WHEEL, NOZZLE CHANGER.

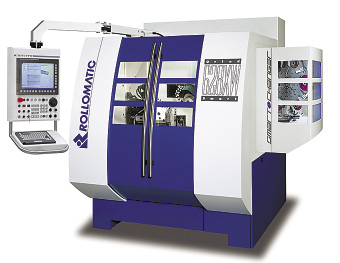

Rollomatic Inc. offers an optional six-station wheel and nozzle changer for its GrindSmart series 5-axis 528 and 6-axis 628 CNC grinding machines. The changer is suited for grinders that make specialty and custom rotary cutting tools, and perform continuous production grinding and tool modification and regrinding. The changer can replace wheel packs while an automatic loader places a new blank into the machine without increasing cycle time, according to the company. (866) 713-6398.
Rollomatic Inc. www.rollomaticusa.com
TAILSTOCK FORCE GAGE.

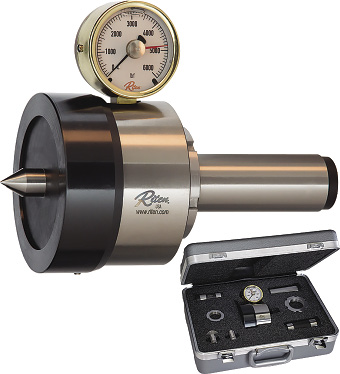

For precision jobs using face drivers, Riten Industries Inc. says its tailstock force gage, in conjunction with the tailstock’s hydraulic cylinder pressure reading, accurately calibrates a lathe or grinder to deliver the precise load for fast setup and repeatable, scrap-free production. The antivibration analog gage displays force from 200 to 6,000 lbs. (90.7 to 2,721.6 kg). It features dual indicators: The black needle shows actual force in real time, while the red needle becomes permanently set at the highest reading recorded during the procedure. (800) 338-0027.
Riten Industries Inc. www.riten.com
SOLID-CERAMIC ENDMILLS.

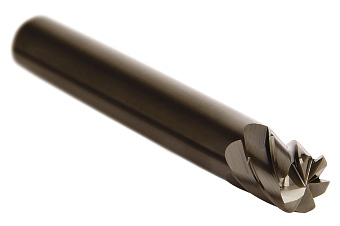

Beyond KYS40-grade solid-ceramic endmills from Kennametal Inc. rough nickel-base alloys at up to 3,300 sfm (1,000 m/min.) and last two to three times longer than comparable solid-carbide tools, according to the company. The tools have an enlarged core to enhance rigidity and reduce deflection at high cutting speeds and a 40° helix to increase shearing action and chip evacuation. Two types of endmills are available: a 6-flute version for facemilling and profiling and a 4-flute, necked version for slot milling and pocketing. (800) 446-7738.
Kennametal Inc. www.kennametal.com
COLLET CHUCK.

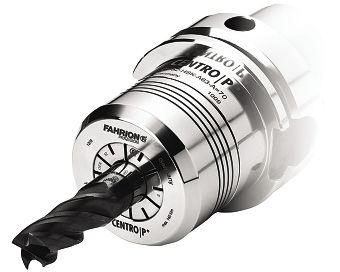

Based on the ER collet standard, the FAHRION Centro P collet chuck from HORN USA Inc. provides a total indicator runout of less than 3µm at 3 times diameter and is balanced for speeds up to 30,000 rpm. The system’s rigid construction dramatically reduces vibration to impart high-quality surface finishes and extend tool life and, compared to the ER standard, is six times more precise and increases clamping forces 100 percent, according to the company. (888) 818-4676.
HORN USA Inc. www.hornusa.com
CARBIDE, P/M ENDMILLS.

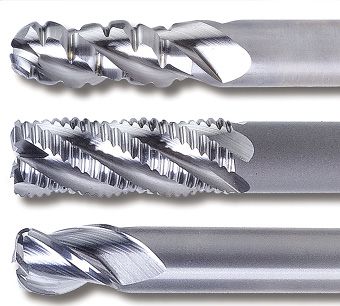

YG-1 Tool Co. offers high-performance carbide and P/M endmills specifically designed for milling titanium, stainless steel and aluminum alloys. A 61-page catalog about the tools is available on the company’s Web site (see below) or from distributors. (800) 765-8665.
YG-1 Tool Co. www.yg1usa.com
VERTICAL LATHES.

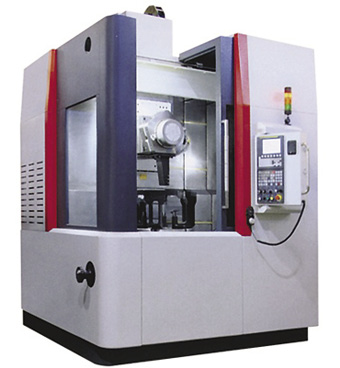

SMTCL USA Inc. reports that it introduced two vertical lathes to its vertical turning center line after recognizing that a niche needed to be filled in the vertical turning function of the machining industry. According to the company, the machines are built in an ISO-certified factory environment using the latest casting technology. (626) 667-1192.
SMTCL USA Inc. www.smtcl-americas.com
CB-STYLE BORING HEADS.

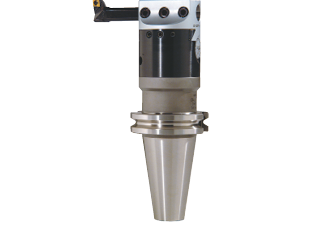

Criterion Allied Inc.’s CB-style boring heads (shown is a CB-202B head with a CHB-80B/DI bar) are for use in CNC machine tools and provide a direct reading adjustment of 0.001 " (0.025mm) on diameter. The large mounting surface maximizes rigidity and stability, according to the company. The boring range is from 0.050 " to 21.500 " (1.27mm to 546.1mm). Criterion Allied was recently formed when Allied Machine & Engineering Corp. acquired Criterion Machine Works. (800) 321-5537.
Allied Machine & Engineering Corp. www.alliedmachine.com
DOVETAIL CUTTERS.
Micro 100 Tool Corp.’s solid-carbide dovetail cutters are available with 30°, 60° and 90° included angles, uncoated or with an AlTiN coating and in diameters up to 0.500 " (12.7mm). According to the company, it makes the tools with a proprietary carbide process that eliminates chipping and breakage under normal machining conditions, which extends tool life. (800) 421-8065.
Micro 100 Tool Corp. www.micro100.com
TOP JAWS.

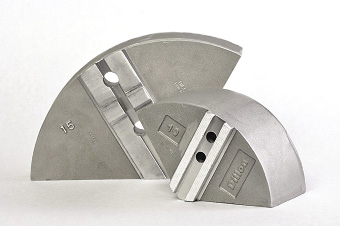

Dillon Manufacturing Inc. has expanded its line of full-grip jaws to 24 " (609.6mm) in diameter. The cast aluminum, wraparound-type top jaws minimize jaw force for thin-walled parts and distribute the gripping pressure over more of the workpiece surface to help maintain repetitive accuracy, according to the company. This type of jaw reportedly reduces distortion and allows users to achieve close tolerances and concentricity. (800) 428-1133.
Dillon Manufacturing Inc. www.dillonmfg.com
CERMET INSERTS.

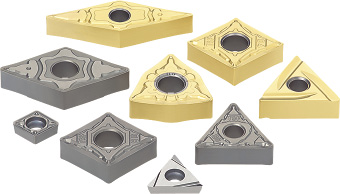

Tungaloy Corp.’s uncoated NS9530 and coated GT9530 cermet insert grades are for turning carbon and alloy steels. According to the company, its R&D team developed the grades to enhance fracture resistance and tool life and impart fine surface finishes. The grades are used to produce a vast array of insert styles to suit numerous turning applications. (888) 554-8394.
Tungaloy Corp. www.tungaloyamerica.com
MILLING TOOL.
Mil-Tec Inc.’s HV11 is a high-velocity, high-performance milling tool for machining nonferrous alloys. The tool’s ground and polished insert has positive axial and radial rakes and a razor sharp cutting edge, allowing it to shear the workpiece material, according to the company. The long insert length is reportedly ideal for deep axial cuts and generates a 90° shoulder. A two-screw design enhances holding strength between the insert and tool body. (800) 564-5832.
Mil-Tec Inc. www.miltecusa.com
MULTITASK MACHINE.

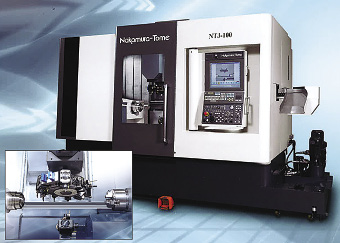

The Nakamura-Tome NTJ-100 multitask machine from Methods Machine Tools Inc. is suitable for low- to high-volume production. The machine offers up to 54 tool stations for turning operations and 24 tool stations for milling. According to the company, an upper turret swiveling B-axis with a range of 182° is ideal for producing angular features, eliminating the need for angle milling heads. The machine provides X-axis and Z-axis speeds of 787 ipm (20 m/min.) and 1,574 ipm (40 m/min.), respectively. (877) MMT-4CNC.
Methods Machine Tools Inc. www.methodsmachine.com
FACE GROOVING HEADS.

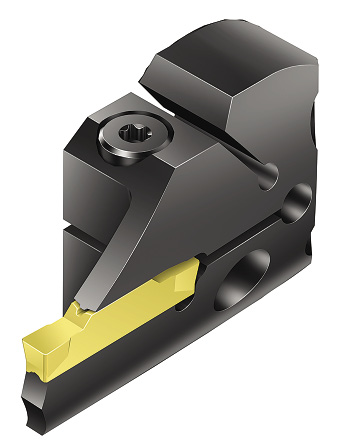

Sandvik Coromant Co. offers its CoroBore 825 SL face grooving heads as an alternative to groove milling. The rotating axial face grooving tool accepts a standard SL32 blade and CoroCut 1-2 inserts and has through-coolant capability for enhanced chip control, which is critical when grooving because chips are more prone to becoming trapped inside a groove and being recut. The heads offer radial fine adjustment for presetting purposes and are available in diameters from 47mm to 1,275mm (1.85 " to 50.20 "). (800) SANDVIK.
Sandvik Coromant Co. www.sandvik.coromant.com/us
WHEEL TRUING AND DRESSING MACHINES.
Rush Machinery Inc.’s wheel truing and dressing machines are for truing and dressing flats, angles and radii on individual diamond and CBN wheels and multiple wheel packs. The machines are simple to operate, accurate and cost effective, according to the company. The customized, easy-to-use vision software reportedly makes it easy to achieve tight-tolerance truing and dressing. Fully enclosed machines with a 3-axis PLC and machines with diameter capacities to 42 " (1.07m) are available. (800) 929-3070.
Rush Machinery Inc. www.rushmachinery.com
COMBINATION CHUCKS.

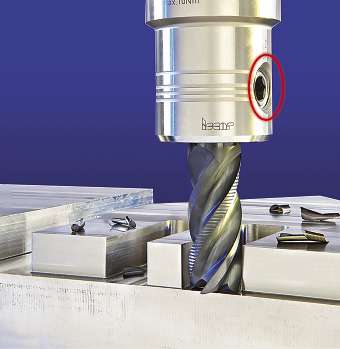

Iscar Metals Inc.’s HYDRO-SURE chucks combine hydraulic clamping with side-screw clamping for Weldon-type shank tools. Because the HYDRO-SURE adapters can be used for standard Weldon shank tools, there is no need for special tools and adapters to prevent tool pullout, according to the company. The chucks provide high-torque transmission when applying standard Weldon shank tools and have 0.003mm concentricity. They are available for tool diameters from 16mm to 32mm. (877) BY-ISCAR.
Iscar Metals Inc. www.iscarmetals.com
DIGITAL BORING HEADS.

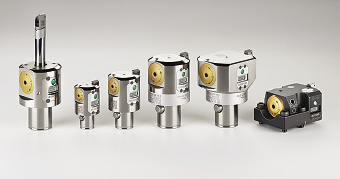

BIG Kaiser Precision Tooling Inc.’s Kaiser family of digital boring heads provide a digital readout with 0.00005 " (1.27µm) resolution on diameter. This represents the actual movement of the tool carrier, which eliminates the backlash factor, according to the company. Users can swap existing Kaiser analog boring heads with the digital ones. (888) TOOL-PRO.
BIG Kaiser Precision Tool Inc. www.bigkaiser.com
MICROENDMILLS.
Tungsten Toolworks offers seven microendmill geometries in a virtually unlimited variety of diameters, lengths, end conditions and coatings, including diamond. The geometries are based on customer input. The company can configure cutting diameters as small as 0.005 " (0.127mm) from fractional-inch or metric carbide blanks. The company also offers carbide drills, step drills, routers, reamers, tapered tools and other cutting tools. (800) 854-2431.
Tungsten Toolworks www.tungstentoolworks.com
DEEP-HOLE DRILL.
KOMET of America Inc.’s KUB Centron Powerline drill is for drilling up to 9 diameters deep. The drill offers modularity, is available in an extended-diameter range up to 65mm (2.6 ") and is suitable for a variety of applications, including those for the oil and gas, heavy machinery and automotive industries. (800) 656-6381.
KOMET of America Inc. www.komet.com
FILTER ELEMENTS.

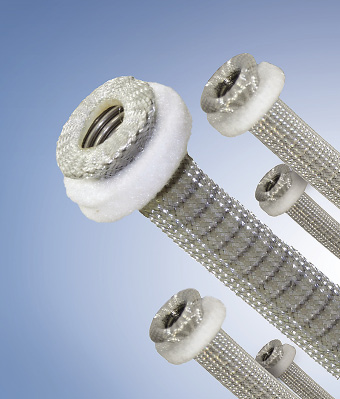

Filter Technology Engineered Systems offers replacement filter flex tubes for filtering systems from various manufacturers. Compatible, high-performance replacement flex tubes are available for Coopermatics, Chem-San, CSI, Belmont, National Standard and other brands. A long-life 304 stainless steel spring and polyester felt gasket come standard with the super-polymer filter flex tube. (734) 744-6446.
Filter Technology Engineered Systems www.filtertechno.com
COATING SYSTEM.

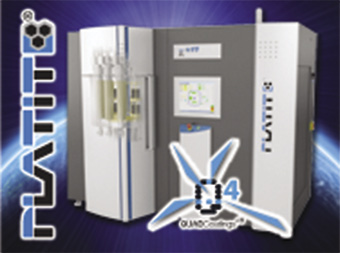

Platit Inc.’s PI411 coating system deposits the new QuadCoatings4 PVD coatings. The coating system is the company’s largest in its “11” series and is for companies that want to productively coat tools around the clock, according to Platit. The system enables easy tool loading and the ability to coat 504 10mm-dia. cutters in 3.5 hours. The system’s LGD etching procedure provides a strong adhesion of the coating to the substrate and tolerates cleaning errors. (847) 680-5270.
Platit Inc. www.platit.com
CARBIDE ENDMILLS.

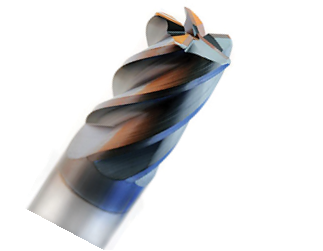

Dura-Mill Inc.’s WhisperKut Plus solid-carbide endmills with Dura Shield are an enhanced version of the WhisperKut series. By incorporating several design features, the endmills provide a long tool life and enable roughing and finishing in peripheral and slotting operations when milling all types of ferrous materials, according to the company. (800) 444-6455.
Dura-Mill Inc. www.duramill.com
