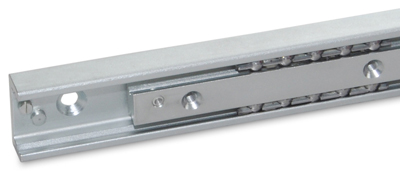

J.W. Winco Inc. offers GN 2404 steel telescopic linear slides with partial extension in metric sizes.
These RoHS-compliant telescopic linear slides are used, for example, for storage drawers and sliding doors or in jig making for a sliding motion in a linear direction. If the support screw is removed on both sides, the sliding distance extends the length of the rail plus an additional distance of slightly more than half the length of the rail. External elements should limit the maximum sliding distance; the supports of the rail have been designed to guard against the inadvertent extraction of the runner from the rail.
Rail and runner are made of heat treatable steel, zinc plated, blue passivated finish, with the raceways hardened. Balls are made of anti-friction bearing steel, hardened. Ball cage is zinc plated steel.
