SRP 5000 Angular Positioning System

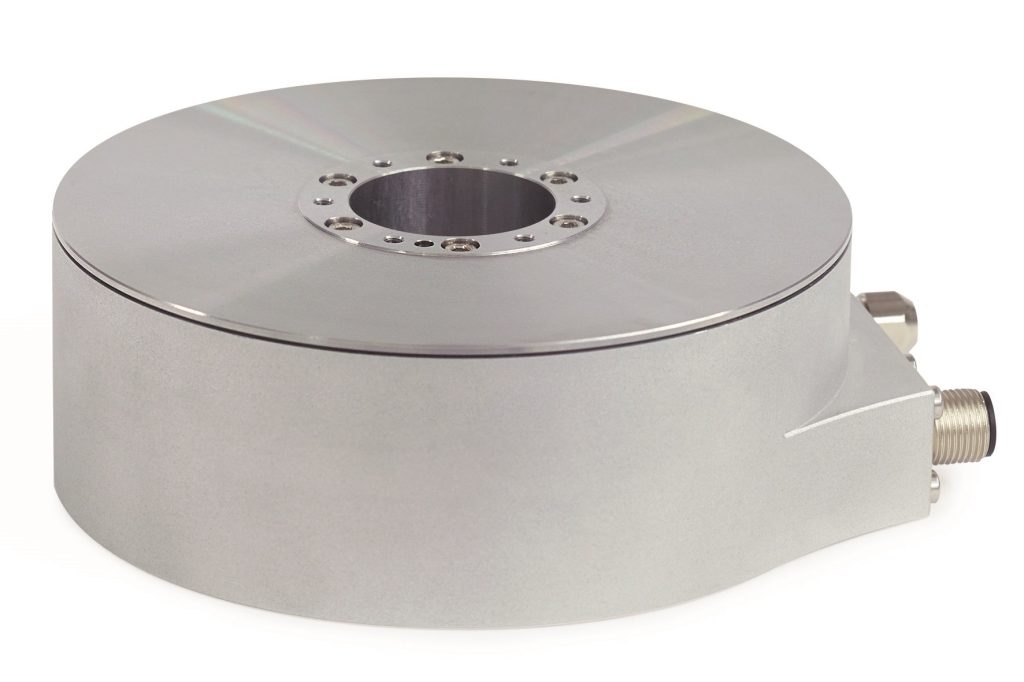

The new SRP 5000 angular positioning system from HEIDENHAIN incorporates its high accuracy MRP 5000 angle encoder with accomplished bearing technology along with a unique ETEL torque motor with ultralow detent torque. This combination allows for high stiffness with low cost of ownership and can easily replace rotary air bearing systems used for metrology. Industries that could take advantage of the SRP 5000 system are semiconductor manufacturing, metrology and micromachining.

The SRP 5000 is compact in size and is only 46.3mm in height and 124mm in diameter.

The system can be ordered in incremental or absolute models, where the incremental versions have encoders with 30,000 signal periods per revolution and system accuracies down to +/- 2.5 arc seconds. The absolute version has the same accuracy level and resolutions to 28 bits via the EnDat 2.2 interface.

The slotless iron-core ETEL torque motor has a peak torque of 2.7 Nm, a rated torque of 0.387Nm and the detent torque is just 0.2 percent of the rated value. The motor is rated for 300 rpm and permits an extraordinarily smooth motion, according to the company.

The SRP 5000 is best used with the AccurET position controllers from ETEL as absolute peak performance can be achieved with regard to dynamics, thermal management and position stability. Other controllers can be used, however thermal overload protection must be maintained in the controller.
