The inner workings of lathes

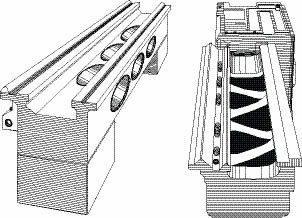

• The headstock has several functions. It supports and aligns the spindle and its bearings so the axis of the headstock remains coaxial with the tailstock and parallel to the ways. Like the bed, the headstock structure resists cutting forces acting to force it out of alignment. In most lathe designs, it is permanently and rigidly connected to the lathe bed or part of the same casting.

The headstock also contains and supports belts, pulleys and gearing that couple the lathe motor to its spindle and provides a range of spindle speeds. Sometimes the headstock also provides support for the lathe motor.

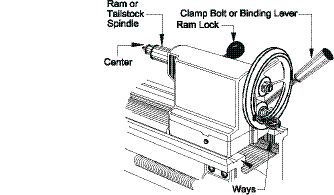

• The tailstock is usually a casting that slides along the ways. A locking mechanism called the clamp bolt or binding lever secures it to the ways and prevents it from moving. The tailstock holds a lathe center in its ram for turning or facing. The ram, which is also called the tailstock spindle, is driven in and out of the tailstock casting by a screw thread and handwheel, and locked into position. In addition, the tailstock holds a tool in a chuck or directly in its internal Morse taper. The screw mechanism of the ram forces the tool into the rotating work. Although the tailstock barrel is usually concentric with the headstock, most tailstocks can be moved out of this alignment to cut tapers.

• The carriage has four components: saddle, apron, compound slide and cross, or top, slide.

The saddle is the H-shaped casting that rests on the ways. It forms the base of the carriage and supports both the cross slide and apron. The underside of the saddle faces slides along the ways.

The apron is the flat, vertical, rectangular plate on the operator’s side of the saddle. Inside are the drive mechanisms to move the carriage along the ways using manual or power feed. On lathes with cross feed—the ability to drive the cross slide at right angles to the ways—an additional mechanism inside the apron uses the leadscrew to drive the cross slide. The half-nut mechanism inside the apron locks the carriage to the leadscrew for thread cutting. Controls for power feeds and threading are located on the apron face. The carriage locking screw binds the saddle to the ways, which ensures the calibrations on the compound rest are accurate by preventing saddle movement.

The compound slide holds the toolholder. On most lathes, the compound slide can be swiveled 360° and locked in any position. This permits the tool to move across the work at any angle by turning the tool post slide handwheel. The compound slide has degree calibrations to simplify setting its angle. The compound slide typically does not have a power feed.

The cross, or top, slide is a casting on top of the saddle that holds the compound rest. The cross slide moves at right angles to the ways either manually by turning the cross-feed handwheel or by using the power cross feed. CTE
