Toolholding & Workholding

Cutting Tool Engineering's video booth visit with BIG DAISHOWA Inc. at EASTEC 2021 covers an array of the company's latest products.

The quarter-turn knobs allow for quick locking and unlocking without the use of tools. The ON/OFF markings and perceptible "click" indicate the locked and unlocked states. Red indicator band is visible when fastener is in the OFF (unclamped) position.

Compact in size and completely modular, this versatile and simple clamping system allows easy height adjustment by stacking the modules. The pins or screws can be easily attached to the underside of a plate or a workpiece for a standardized locating.

Mitee-Bite Products introduces the Pitbull® Wear Plate. This shim provides a hard barrier between Pitbull® Clamp and fixture, preventing distortion of back wall when using aluminum or mild steel fixtures.

With its ergonomic slim outer profile for easy and comfortable actuation, the TENDO Platinum V2 is specifically designed for direct clamping the tool. Imbalance correction goes unnoticed and is carefully designed into the body profile. Constructed of durable hardened tool steel, the V2 improves stability, stiffness, and clamping force to give you a toolholder with longer sustained accuracy throughout its life.

Flex Locator System consists of tapered pins and receiving bushings. In combination, these parts are designed to be mounted on fixture bases and plates to allow for highly accurate locating and positioning with repeatability of 0.01 mm. Fastener-receptacle pairs replace nut-and-bolt assembly so that operators swap out fixture plates and other automation components without the use of tools and with excellent repeatability.n

The Adaptix Soft Jaw uses adjustable fingers and interchangeable tips to grip a wide variety of parts or workpieces during the computer numerical control (CNC) machining process. It was specially engineered to be a one-size-fits-all alternative to standard, single-application aluminum soft jaws.

Changing a three-axis machining process from a vertical machining center (VMC) to a horizontal machining center (HMC) offers many benefits.

Four types of clamps are available with the locking mechanism including Vertical Handle, Horizontal Handle, Pull (Latch) Style and Push (Straight Line) Style toggle clamps. The added feature ensures that the toggle clamp will remain in the closed / hold down position for maximum security in workholding applications. Additionally, it also ensures that the clamps remain in the unclamped / open position to facilitate part change and operator convenience.

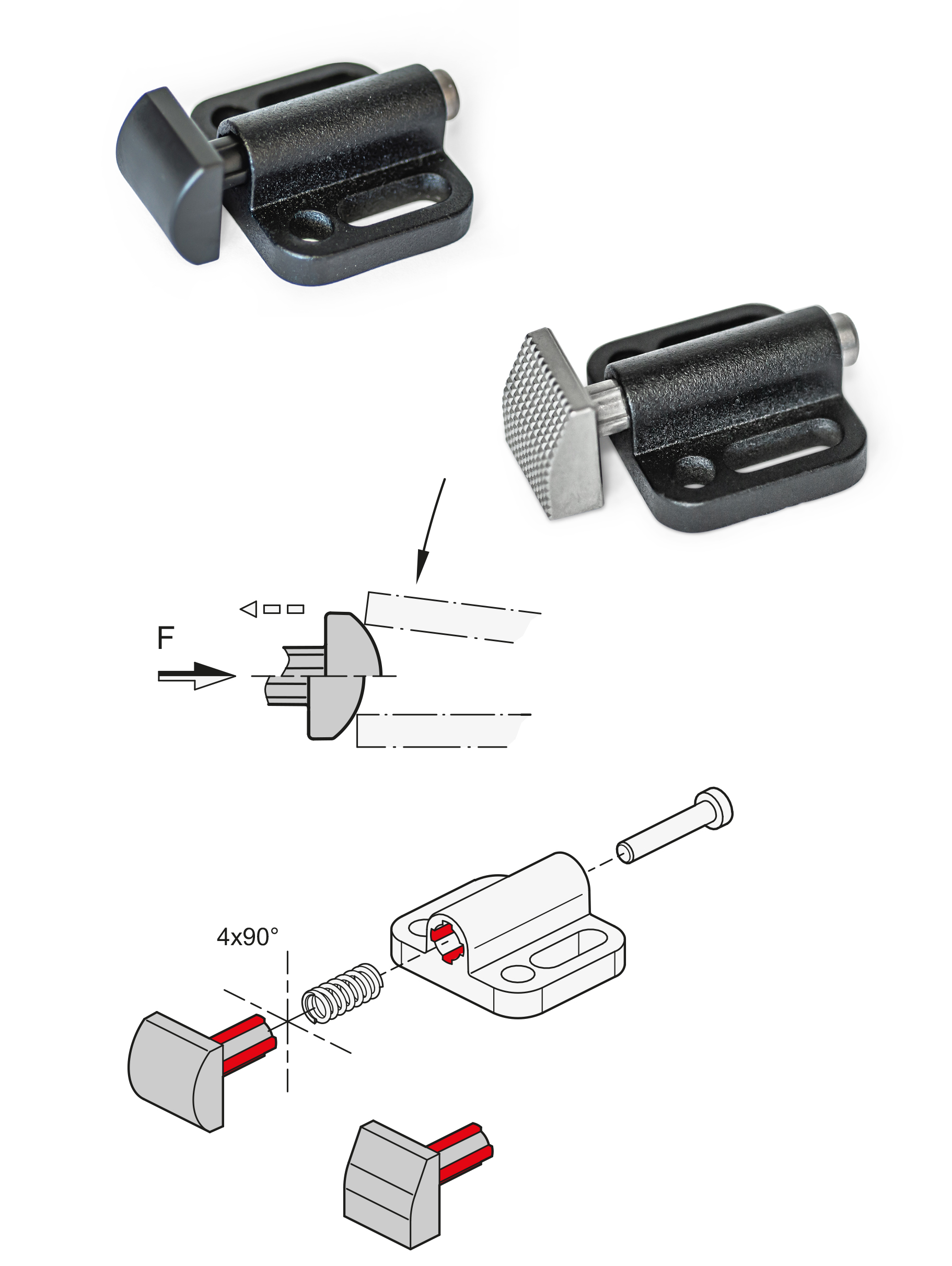

GN 415 is available in three sizes between 0.87 and 1.54 inches (22 and 39 millimeters) wide, each with two spring strengths. The two available slide types and the wedge-shaped or cylindrical, rounded thrust pad not only hold parts with side pressure but also exert an additional downward force. All thrust pads can be rotated around their long axis in 90-degree steps to optimally adjust to the part geometry – this is as simple as loosening the central slide screw. The thrust pads are also available in a POM plastic version as well as in stainless steel with smooth or textured pressure pad for better grip. The latter type is produced by injection molding of metal and is therefore subject to only minimal measurement tolerances.

Confirming that your parts are properly supported and ready for clamping has never been easier and more reliable. Be confident your part is safe and secure every time with Vektek's latest Part Present Sensing Work Support. To learn more, please enjoy this short instructional video.
