Inspection & Metrology Equipment

The PolyScan XL6 is designed to measure parts up to 1600 mm, combining 12 cameras and 12 projectors to provide 210 effective scanning units. It is ideal for medium-to-large aerospace castings, or automotive sheet metal components. Complete inspection of parts is achieved in only 6 minutes. Surround design and simplicity of automation means it can be easily integrated into a production line, while being 100% safe for operators.

Consistent with the aims of Industry 4.0, the new Metrology Gate portal provides remote access to information on the status and performance of all connected metrology devices. Information available includes measurement results and a summary of errors, a record of program changes, uptime of the CMMs and OEE (overall equipment effectiveness). Historical logs assist troubleshooting and warn when routine maintenance is due, not only of the inspection machines but also of the machine tools or other equipment on which the components are being made. n

Made in Athol, MA U.S.A., the themed T436.1 Micrometers are accurate, rugged, and feature renowned Starrett quality workmanship. The micrometers feature .0001" graduation, ratchet stop, lock nut, and carbide measuring faces on the anvil and spindle. No-glare satin chrome finish on the thimble and sleeve with staggered lines and distinct figures provide precise and easy readability.

Originally launching in 2016, the microScan3 is an extremely intelligent and durable safety laser scanner that enhances machine availability and productivity due to its safeHDDM scanning technology. It provides flexibility for safe automation processes with simultaneous protective fields, contour detection fields, and detailed data output. In addition, the microScan3 offers a 9-meter protective field range with a scanning angle of 275o.

The system is ideal for inspecting a wide variety of mechanical, electrical, electronic, moulded, cast and pressed components that fall within its 300 x 200 x 200 mm working volume. Nikon's proprietary optical measuring, image processing and analysis technologies are employed to detect feature edges at very high speed, capturing accurately and automatically the shape and dimensions of even the most complex components.

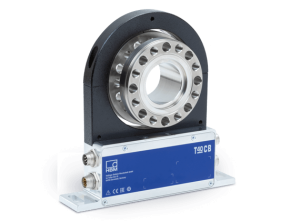

This compact model, measuring a mere 49mm/54mm in length and the central bore hole with a diameter of 37.5mm/ 46.5mm, provides technicians with the flexibility and user-friendliness necessary for carrying out application tests on automotive parts, such as coaxial transmissions or gearboxes.n

These tools, from clearance calculation to wall thickness analysis, form a comprehensive combination of complementary functions for digital product development - something otherwise reserved for expensive CAD systems. Together, with an intuitive interface, these features support users from different fields of expertise in making quick and reliable decisions.n

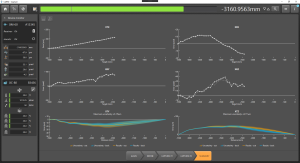

XM-60 has become the market leading solution for direct measurement of all six degrees of freedom (linear, vertical and horizontal straightness, pitch, yaw and roll) on any form of linear axis. With the addition of the new XM-60 long range measurement functionality in CARTO 4.2, unlimited measurement range is now possible for the first time. n

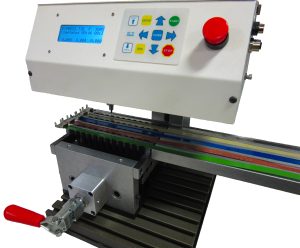

The clever design features 5 rows of clamping with 12 "fingers" on each row that flex and conform to part dimensional variations as well. One toggle lever clamps all five bands and draws them down securely for the dot peen marking operation. Custom configurations and pneumatic powered designs are also available.

The 5074B also comes with two features that deliver major operational improvements. The new amplifier is ready to operate within around six seconds, as compared to the previous time of 30 seconds for each startup procedure – so users save valuable time. This improvement has a direct impact on plant availability, especially for modular plants with swappable hot-plug modules. Another innovation: the two energy paths in the M8 connectors are now separated so that additional standard devices can be connected as per the industry standard without extra considerations.

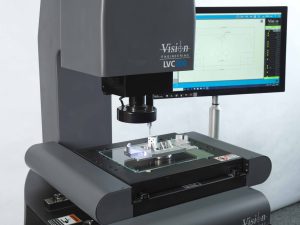

Ideal for measuring large components or multiple small components, quickly, easily and accurately, the LVC range offers faster measurement, high accuracy levels, and benefits from Vision Engineering's consistent focus on ease of use for all its products.n

The Minimicromar3 is designed for measuring external diameters, positioning and length for both smooth and interrupted surfaces. It can measure workpieces from 25mm to 42.5mm with a measuring range of ±100 µm and a repeatability of ≤0.1 µm. It is designed with a high degree of protection against coolant and abrasive substances. Its low thermal drift value (<0.1 µm/°C) helps maintain high measurement precision.
