Vises & Clamps

Receiving the most extensive quality enhancements is the Model 802-U Manual Clamp. The updates include an upgraded air cylinder that ensures the clamp's exerting force is less than the maximum holding capacity when operated at normal pressure, which extends service life; new composite bearings on the trunnion mount and cylinder pivot point that eliminate metal-to-metal contact while requiring no lubrication; and a redesigned clevis bolt, along with increased rivet and pre-stop diameters that increase longevity.

The economical, easy to use WPS Mini features manual Zero Point clamping that attaches directly to the workpiece, provides maximum holding force of 25 kN and highest repeatability of

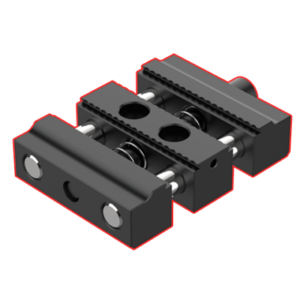

Pin Vises have a small footprint, allowing room for more parts on a table resulting in increased throughput. Pin Vises are also lightweight making them ideal for automated applications where weight is a consideration.

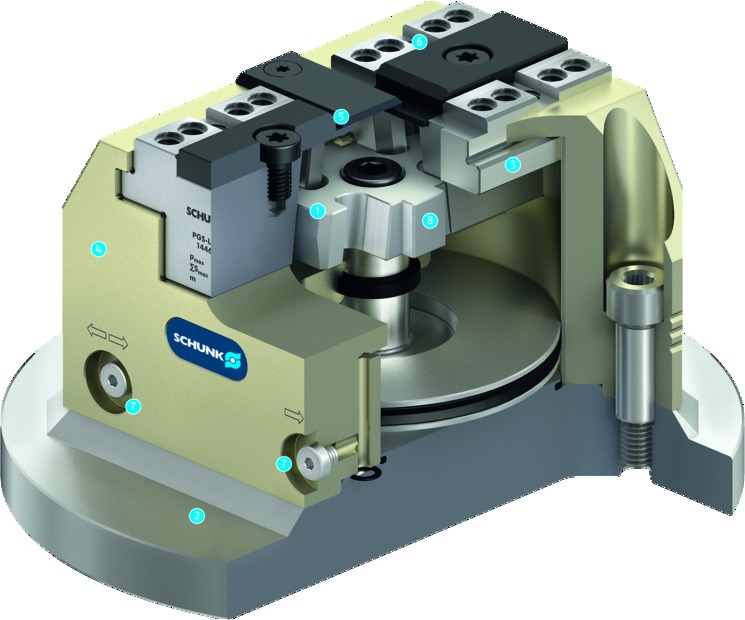

The pneumatically operated clamping force block SCHUNK TANDEM PGS3-LH 100 can be directly mounted on machine tables, dividing heads or VERO-S NSL 150 clamping stations of machining centers via an integrated flange. Its extremely compact design and square shape ensures optimum accessibility and enables a considerable stroke of 6 mm per jaw.

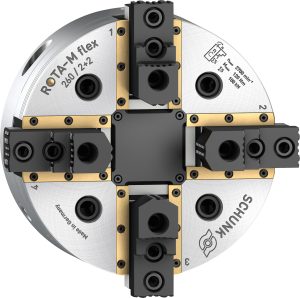

The SCHUNK ROTA-M flex 2+2 clamping is done in a self-locking manner, and the clamping condition is signaled via indicating pins. The standard chuck sizes 260 to 1200 achieve jaw strokes from 9.5 mm to 17.8 mm and high clamping forces from 100 kN to 180 kN.

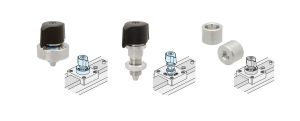

The quarter-turn knobs allow for quick locking and unlocking without the use of tools. The ON/OFF markings and perceptible "click" indicate the locked and unlocked states. Red indicator band is visible when fastener is in the OFF (unclamped) position.

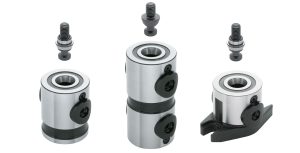

Compact in size and completely modular, this versatile and simple clamping system allows easy height adjustment by stacking the modules. The pins or screws can be easily attached to the underside of a plate or a workpiece for a standardized locating.

DX8, DX6 and DX4 vises were designed using Finite Element Analysis—providing 30% less horizontal push-back deflection than previous DX models. Less vise-body deflection translates to more stability and a lifetime of dimensional precision—setting a new standard in precision flatness, parallelism and repeatability.

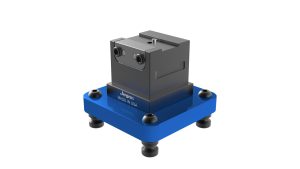

Two of the three new vises are engineered to use with Jergens Quick-Loc™ pallet system and include industry standard patterns 52mm and 96mm. With a single drive screw, Quick-Loc™ provides fast and repeatable fixture changes for small tooling platforms. A square aluminum adapter base provides the connection to either of the two patterns.

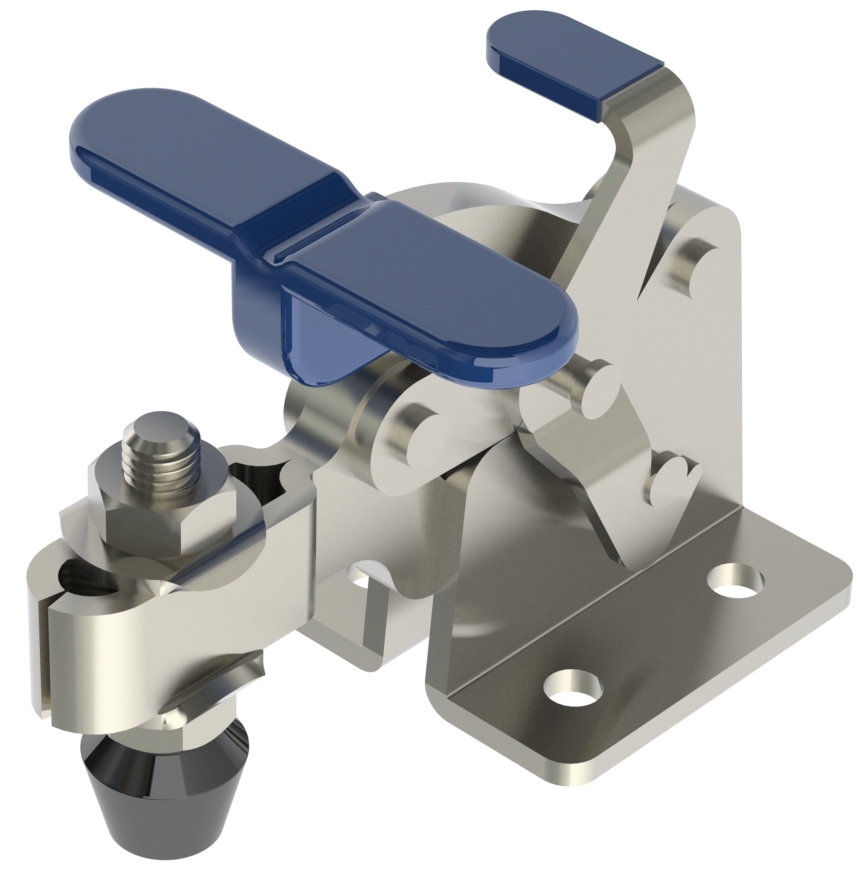

Four types of clamps are available with the locking mechanism including Vertical Handle, Horizontal Handle, Pull (Latch) Style and Push (Straight Line) Style toggle clamps. The added feature ensures that the toggle clamp will remain in the closed / hold down position for maximum security in workholding applications.

The KONTEC KSC mini is the vise of choice for flexible use in efficient blank and finish part machining. Conversion on a larger clamping range is even possible without requiring additional accessories. Different jaw widths of 45 and 70 mm can be used on the same basic vise, allowing optimal adjustment to different clamping tasks.

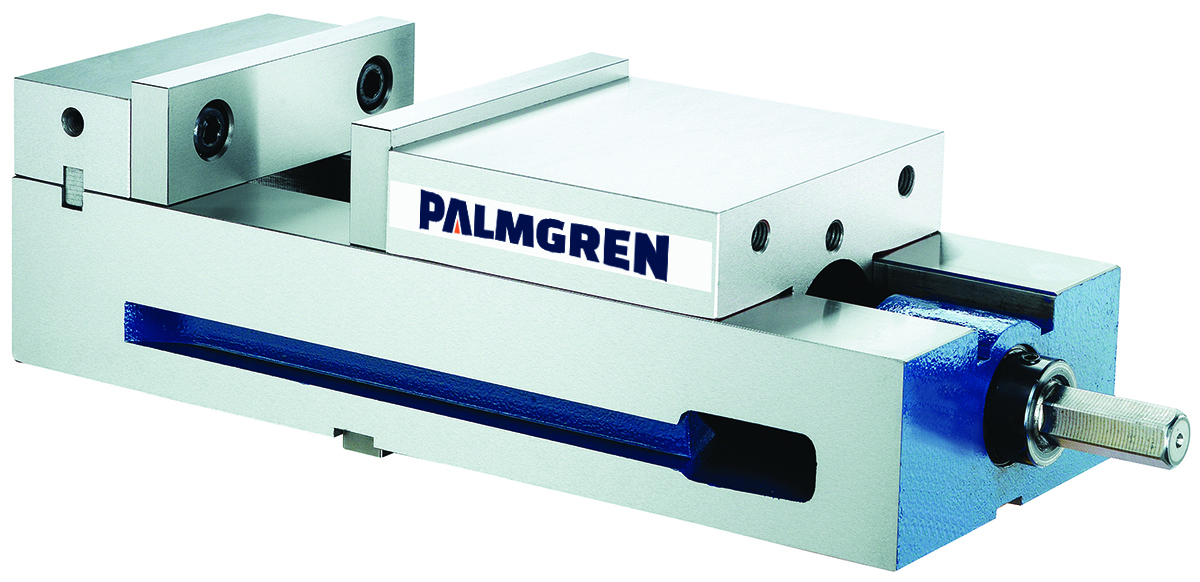

The family of vises is ideal for applications requiring multiple vises to be mounted parallel to each other. Versatile, the vises can be mounted on their base or bottom or vertically positioned on their end. The vises are equipped with Palmgren's Dual Force so as to deliver workholding efficiencies by providing the strength and rigidity to hold parts securely and accurately.
