CAD/CAM Software

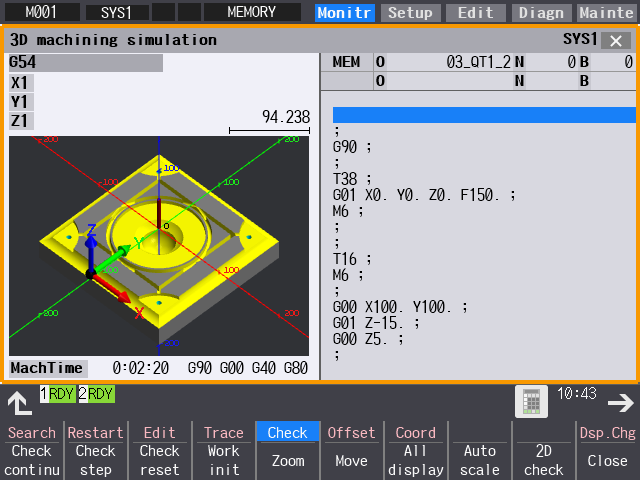

Integrated directly into the HMI, ModuleWorks machine simulation enhances the Mitsubishi controls with high-performance multi-axis milling and turning simulation including gouge and deviation analysis and collision detection with manual or automatic refinement of the simulation result. Workpiece coloring according to the sequence provides convenient visual analysis and enables operators to immediately identify and prevent potential collisions for safe and cost-effective machining.

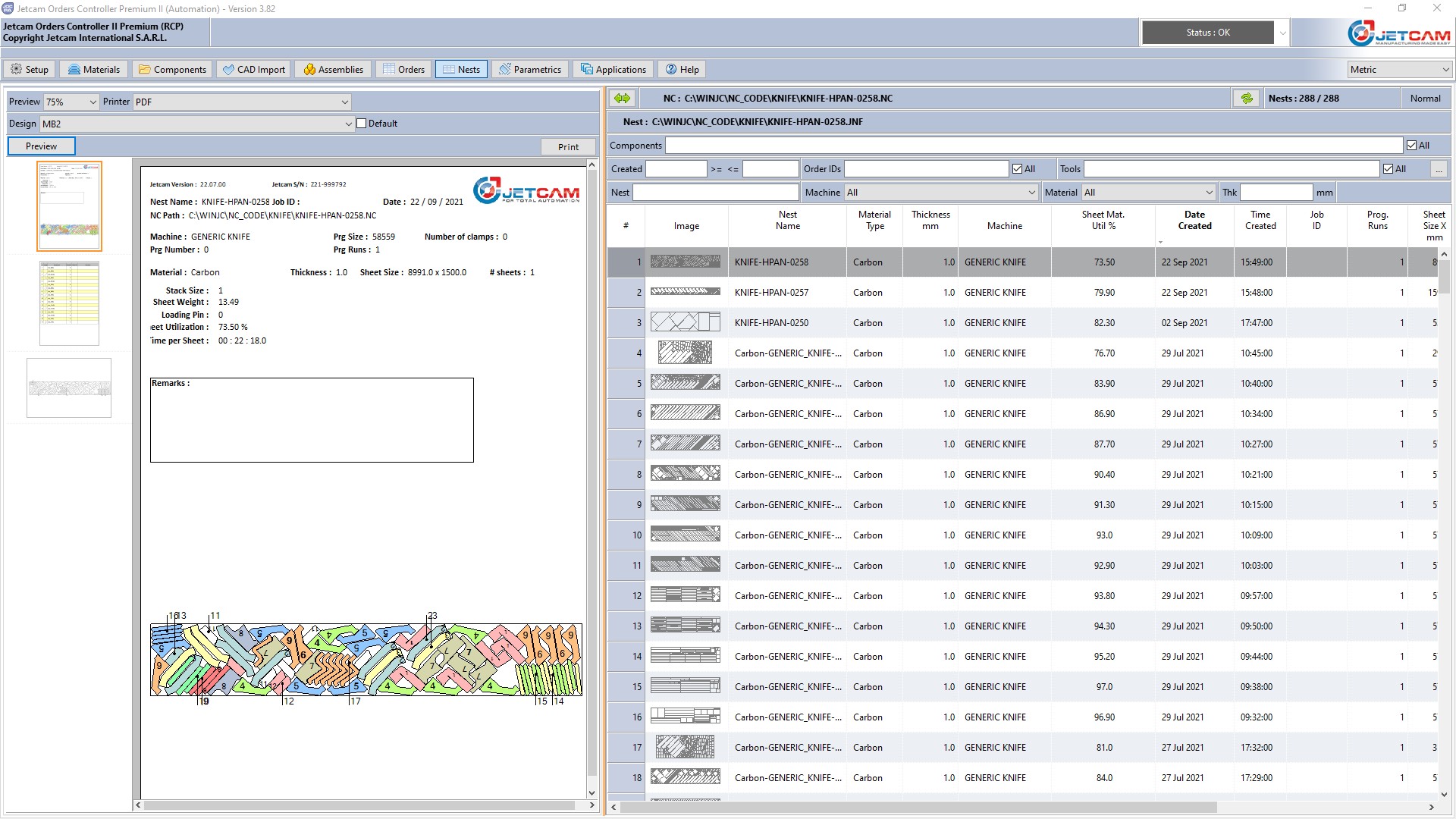

Available in two versions – Premium and Premium Automation (PA) – JOC works in conjunction with JETCAM Expert nesting software to streamline and automate the CAD import and nesting process. When ordering components customers can now specify a desired sheet size and material stock item on a per-component basis, which will override default settings. This gives customers feeding orders from MRP a greater level of control.

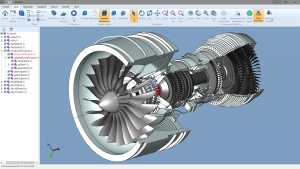

Glovius supports all popular CAD formats including CATIA, NX, Creo and Pro/ENGINEER, SOLIDWORKS, SolidEdge, Autodesk Inventor, and STEP, IGES, and JT. Glovius enables users to measure, section, analyze, compare, and export 3D CAD data to STEP, IGES, and other formats. The new rendering engine in Glovius 6.0 significantly improves file open and rendering performance, resulting in improved visualization and responsiveness. The latest release improves picking and rendering of measurements, allowing users to measure STL, CGR, and other graphics file formats. Additionally, Glovius 6.0 features an improved export option with WYSIWYG enhancements, allowing users to export files as image snapshots, PowerPoint, 3DHTML, 3DPDF, and Bill of Materials (BoM) for easy sharing and collaboration. Users can also now protect IP and product design data by selectively exporting components in an assembly.

Known as NUMcad, this drawing software runs directly from the machine's operator panel and also under Windows on any standard PC. Its user interface mimics that of many popular CAD packages and is highly intuitive, making it ideal for people with minimal design experience. NUMcad is suitable for both design origination and design modification.

With Mastercam 2022, you can now define reusable holder assemblies. Create collections of adapters, extensions, and holders, and store them as an assembly. You can save time and avoid errors by creating reusable assemblies of modular components. These assemblies can be stored in a library and used for the creation of full 3D Lathe Tool assemblies.

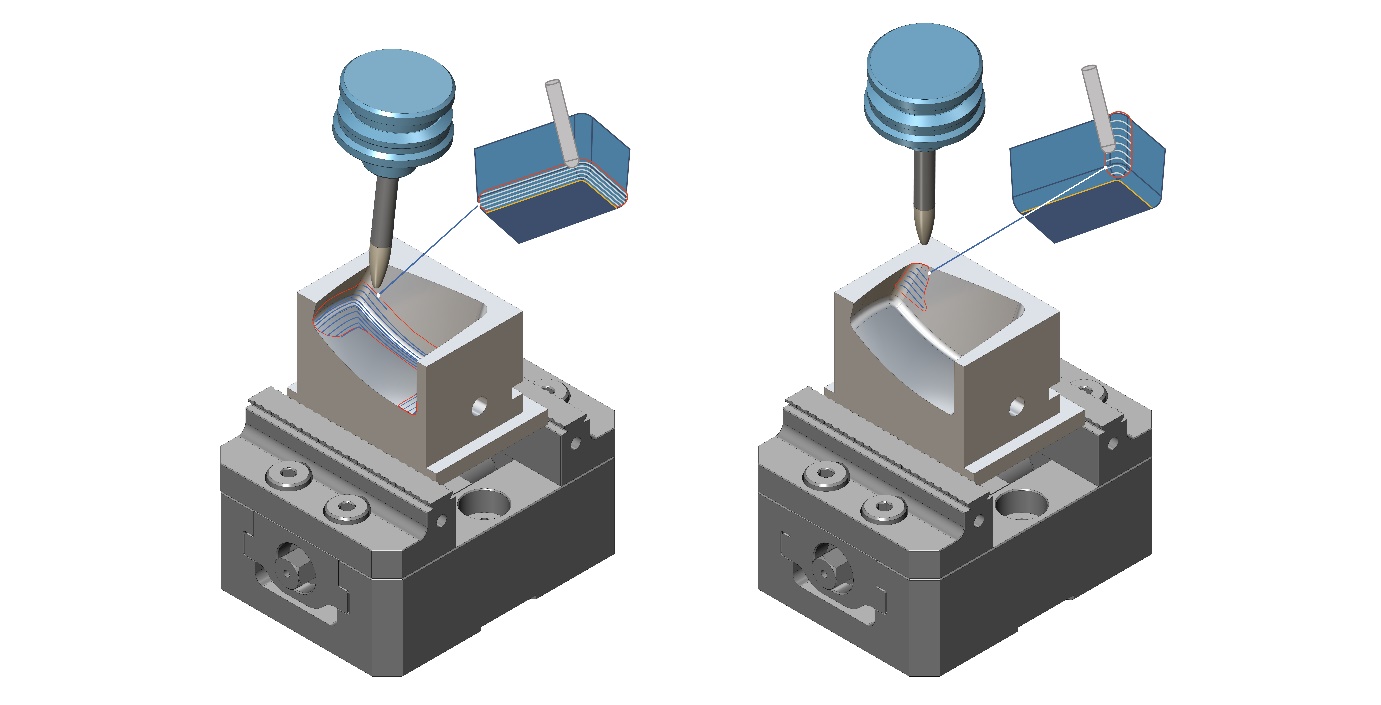

This new feature for multi-axis machining automatically applies a rest finishing cycle to any remaining non-machined areas that could not be reached by the wall and floor finishing operations. The wall and floor finishing operations carry information about which areas can be machined and which areas cannot. The new rest finishing cycle automatically extracts this information from the operations and creates a rest machining area that can be reached using a different tool with automatic tilting.n

The company has designed new applications for Lantek Flex3D which provide easy solutions when designing and machining complete or partial bevels anywhere in the tube. Further, the latest generation software makes it possible to include perforations of various types (round, rectangular, triangular, etc.), and resolve the multiple possibilities that require a comprehensive library of connections and intersections to later assemble complete sets.

CNC Offset Manager runs on Windows and is networked to the Mitsubishi Electric CNC via Ethernet. It also has a feature that allows other automation software or systems to interface with the CNC to fully automate the offset management process, or make the changes from a central cell-management software. This allows software companies to interface their software with Mitsubishi Electric CNC for automation and remote offset management, and allows manufacturers with CNC equipment to automate their machine-tending CNC cells and testing or measuring equipment, or centralize the offset management operation so operators and floor workers can work more efficiently.

PostWoks is a high-end universal postprocessor that generates precise NC code for a wide variety of machines including mills, lathes, and multi-use machines. PostWorks Connect is our latest product innovation, combining an easy-to-use interface, with advanced functionality for complete control of your machine.

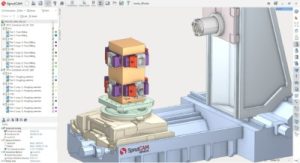

SprutCAM 15 features numerous upgrades including: Multi-parts projects/Tombstone machining; New workflow for multi-task machines (MTM); Experimental Parametric 3D CAD; MachineMaker 2.0 for robots; New generation .NET and visual studio code based postprocessing toolchain; Additional modules for disc cutting, painting, welding, jet cutting, plasma, additive/cladding, and wire cutting; Numerous additional user interface and technology updates. n
