Modular Fixturing Systems

The flat clamping fastener, with machining spacing tolerance of ±0.1 and repeatability of ±0.3, is made to pair with a locking receptacle, which is available separately. Plate thickness of 6 mm or more can be used with the fastener and receptacle. A clamping and holding force as high as 6.7 lb. (30N) can be achieved.

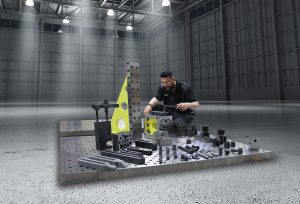

The system was imagined for customers in industries such as agriculture, mining, locomotive, oil & gas or defense who routinely deal with large parts. Before today, the only way to take advantage of modular fixturing's versatility, accuracy and productivitywas to use a larger number of smaller components.

Flex Locator System consists of tapered pins and receiving bushings. In combination, these parts are designed to be mounted on fixture bases and plates to allow for highly accurate locating and positioning with repeatability of 0.01 mm.

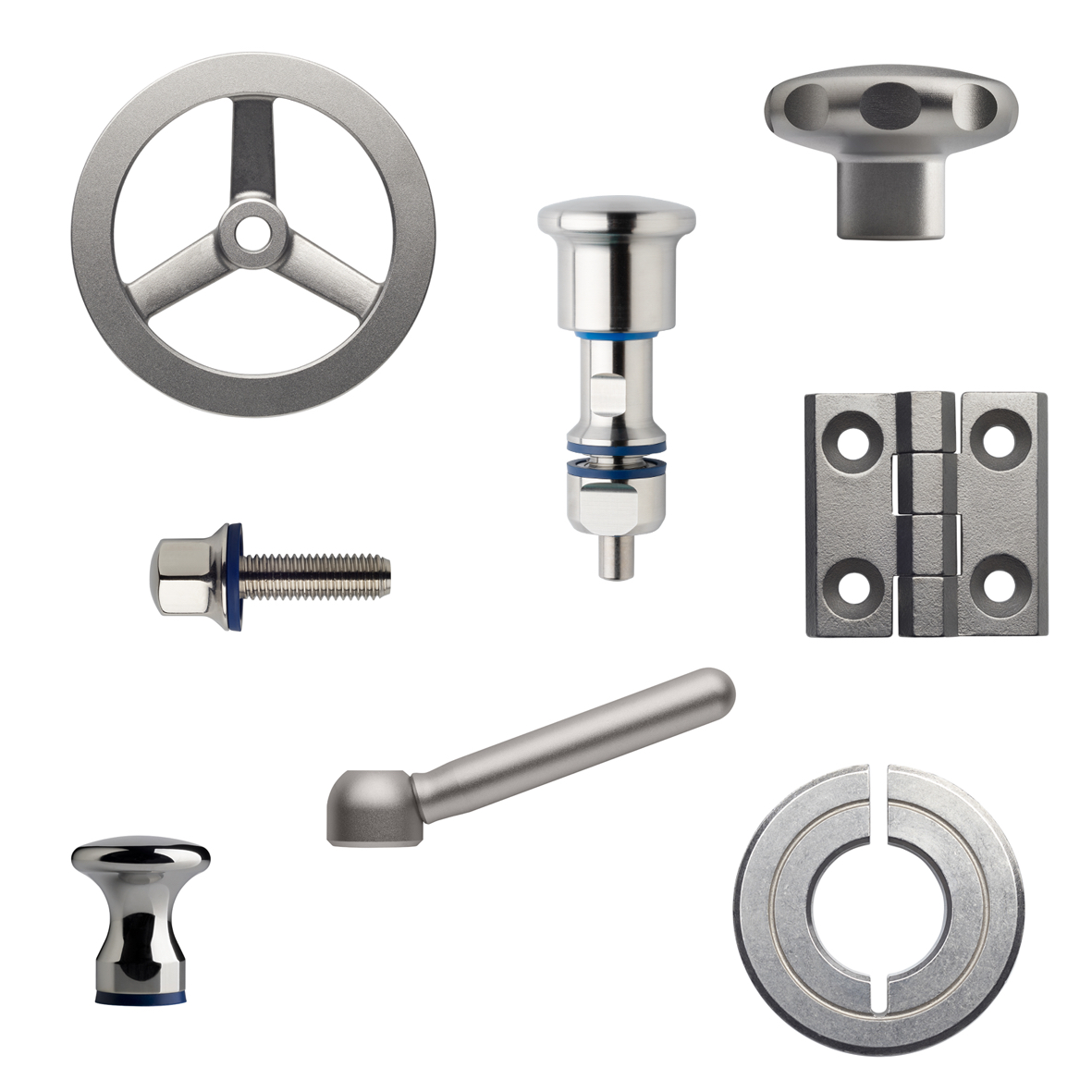

The austenitic AISI 316L (A4) stainless steel receives its high resistance to chlorides and acids primarily from the chromium, nickel, and molybdenum constituents. This predestines the AISI 316L (A4) standard parts from Winco for use on ships and other offshore sites, in swimming pools with chlorinated or mineral-rich waters and, anywhere else that requires such thorough cleaning.

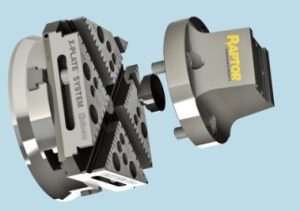

The X-Plate system from Mitee-Bite Products LLC is an extremely versatile modular fixturing platform for 3-, 4- and 5-axis applications, providing many mounting options including a precision quick-change system when clamped in a vise or T-slot table.

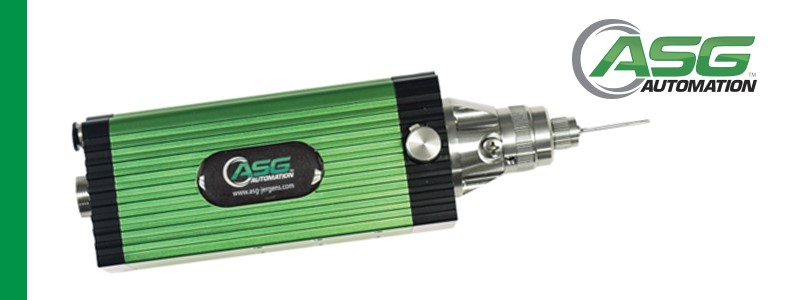

ASG, Division of Jergens Inc., offers an ultralow-torque precision fastening system. The ASG CCS system is the answer to controlled fastening for electronics assembly and other low-torque applications.

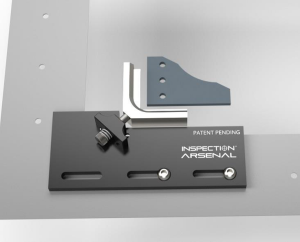

Phillips Precision's Products Division announces its new Vision Corner Block as part of the Inspection Arsenal LEAN, Quick-Swap inspection fixture system. Not only does Phillips Precision offer the only quick-swap standard fixture systems, but they provide quick, creative fixture design and quick shipping of orders. Inspection Arsenal tooling will help optimize an inspection process and uncover hidden profits.

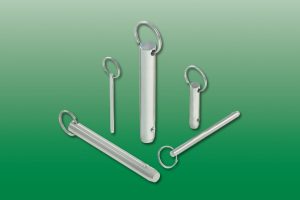

Fixtureworks has introduced its new lineup of ring-handle detent pins in steel and stainless steel. Detent pins provide a secure, quick, easy and positive engagement for fastening, locating and alignment applications. They are ideal for applications that require frequent, repetitive use.

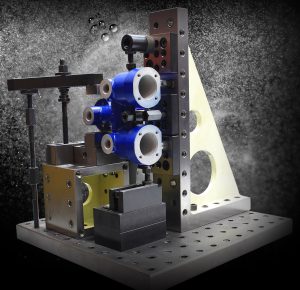

Bluco Corp.'s modular fixturing system is for fixturing low-volume/high-mix work. Using an alternating pattern of dowel and tapped holes, fixture plates are accurate to +/- 0.0004" between centers.

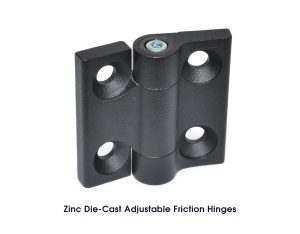

J.W. Winco Inc. offers GN 437 zinc die-cast adjustable friction hinges. The RoHS-compliant hinge body is zinc die-cast, with either a black powder coated, textured finish or silver powder coated, textured finish.

Master Bond MasterSil 910Med is a one part acetoxy type silicone system that meets USP Class VI specifications for biocompatibility and ISO 10993-5 testing for cytotoxicity. This translucent paste has superior chemical resistance and also withstands many sterilization methods, including liquid sterilants, gamma radiation and EtO.

J.W. Winco Inc. offers GN 927.7 stainless steel clamping levers with eccentrical cam with stainless steel contact plate, tapped type, in inch and metric sizes.
