Inspection & Metrology Equipment

The dual-purpose m&h R-400 probe system is the first tactile probe on the market that includes a built-in display. It provides status data at a glance, enables users to save or load settings, and makes it easy to switch between tactile-sensor and tool-setting functions. Designed for shop-floor flexibility, the system can be used as a radio probe by equipping it with a probe shank or as a radio tool setter by mounting it on a tool-setter base. In addition to offering flexible in-machine measurement functions, the probe can help cut costs by eliminating storage of replacement sensors, as only one device needs to be stored.n

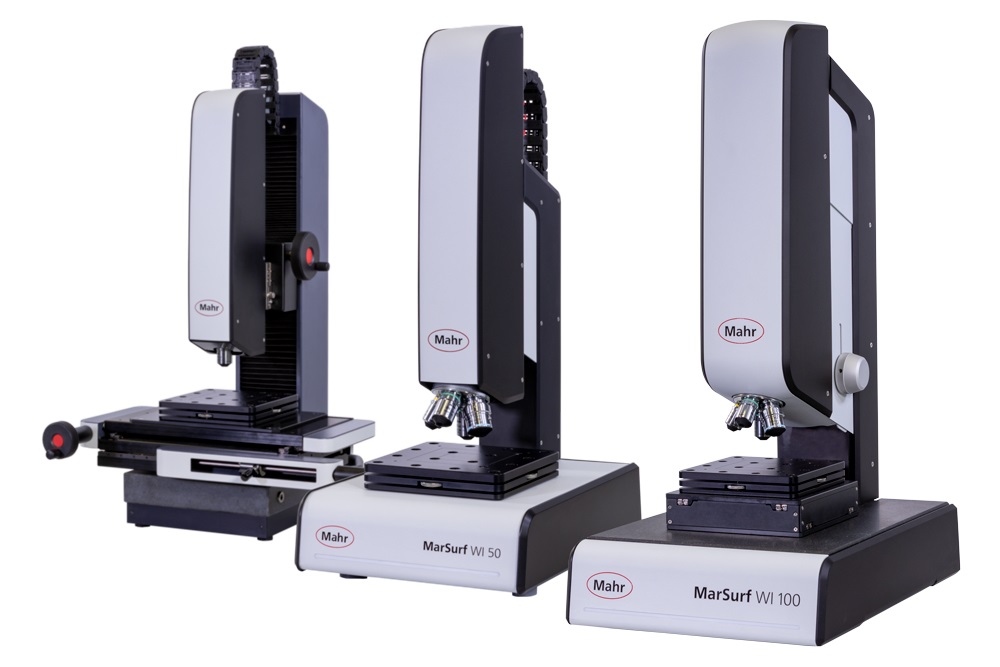

Based on side-by-side two-dimensional image architecture, this allows images acquired by different sensors to be perfectly combined to generate a single workpiece image containing no defects or gaps at stitching edges.Measures parts up to 300mm in length without any vertical movement of the sensors or part. Executes 100 static measurements in two seconds regardless of how the measurement sections are distributed along the workpiece.

Go and No-Go Ring Gages are manufactured with hardened tool steel for exceptional durability and feature a fully knurled circumference for maximum gripping ability and safety. No-Go gages are clearly marked with a red ring. UNC and UNF gages have a 2A tolerance. UNC gages are available in 19 sizes from #2-56 to 2-4 ½ and UNF gages are available in 19 sizes from #0-80 to 1 ½ -12. Metric and metric fine gages have a 6g tolerance. Metric gages are available in 19 sizes from M2x.4 to M68x6 and metric fine gages are available in 19 sizes from M8x1 to M48x1.

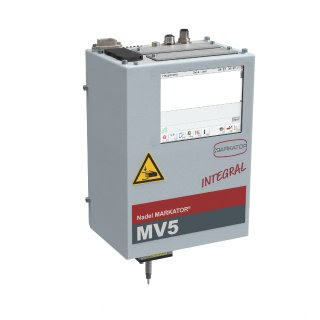

The marking head is suitable to mark several materials up to a hardness of 63 HRC. The marking force of the solenoid which was especially developed for marking purposes can be adjusted individually to the material and the needed marking depth (marking force 1 to 30). With this, a precise marking of nearly all materials is guaranteed.

To ensure the surfaces on the gears are optimized, it is essential to use metrology tools to analyze, understand, and characterize.

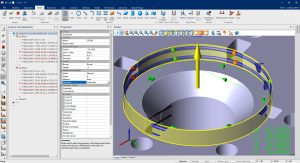

CAMIO 2021 Geometry Validation reduces the time taken when preparing new inspection programs by automatically detecting which surfaces of the CAD model should be used to measure the feature. It ensures that all measurements are taken on suitable surfaces automatically and at the same time provides the programmer with the option to modify the default settings and selections. While the feature is being programmed, the CAD simulation highlights the geometry used for the validation and previews the measurement sequence. This combines with the Teach Path view to provide a full visual and numerical evaluation of the programming sequence prior to executing the touch points or scanning sequence, enabling the programmer to get the inspection sequence right first time when programming online or offline.

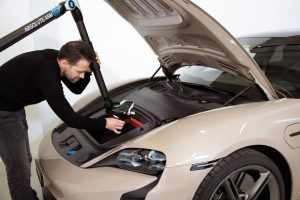

The Absolute Scanner was developed from the ground up for smart manufacturing applications that require high-speed scanning within automated cells and assembly structures located in-line, near-line or in the quality room. The AS1 delivers scanning accuracy within 50 microns in a 60 meter volume, handheld or automated, with an Absolute Tracker AT960 laser tracker. For small to medium size parts or products, the scanner unit can be mounted to any current-generation Absolute Arm 7-axis system for scanning and hidden area inspection with scanning accuracy of 16 microns within a measurement volume from 2 - 4.5 meters.

This latest release of software enables the XK10 to take measurements at multiple points along each rail. The benefit of an increased number of measurement points is that the straightness of each rail is also measured at the same time. Parallelism between the rails can then be determined by looking at the difference in straightness at each point, giving a more accurate picture than a measurement of the overall angle between rails.

This functionality allows the M 310 to be used as a drive unit for the MarWin Easy Roughness Mobile software, enabling another way to interface and control the M 310 while providing the complete functionality of the touchscreen unit on a PC. Direct connection to the PC is available via USB cable or Bluetooth adapter, replacing interface boxes that previously would have been required, and cutting implementation costs by half.n

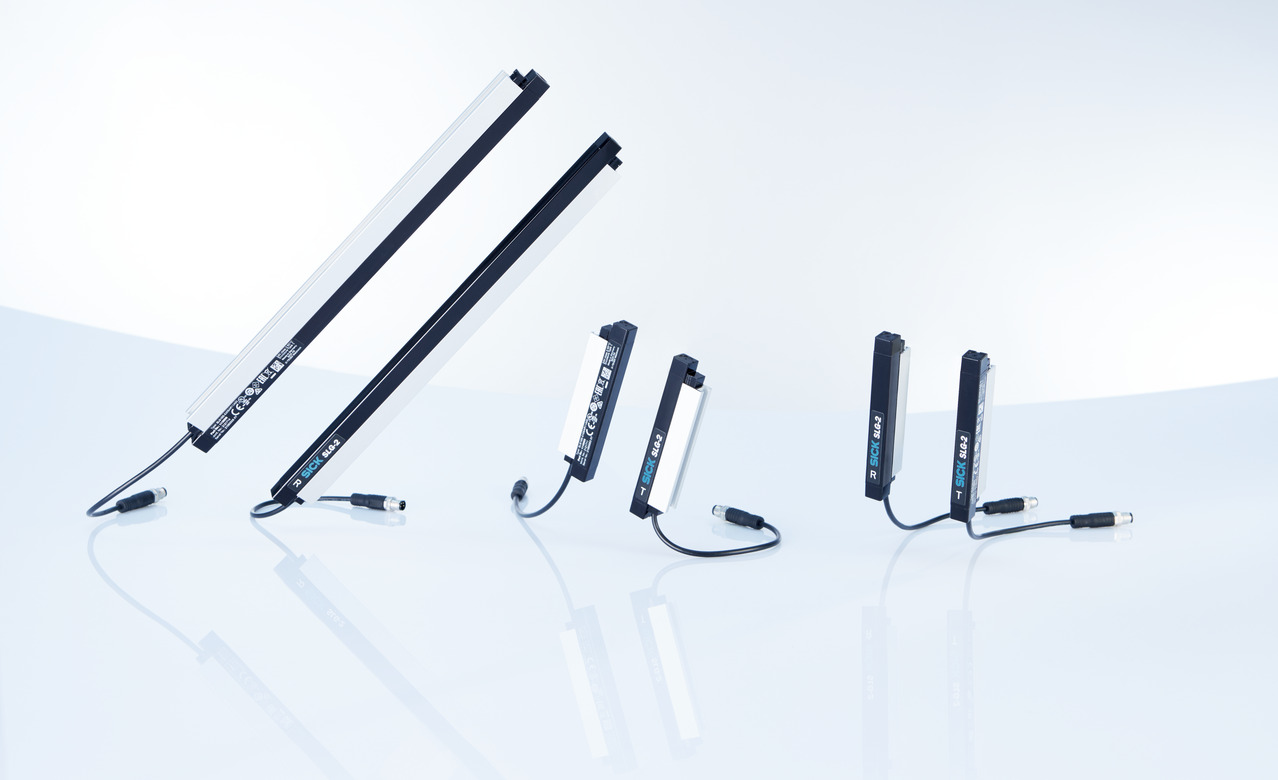

Space-saving dimensions, low-profile construction, detection heights adjustable in practical increments, and a blind zone-free design ensure an easy integration in machines where space is limited. The performance of the SLG-2 with its patented optics is complemented by the integrated smart task functionality and extensive diagnostic options. With IO-Link communication as a standard, the light grid is Industry 4.0 ready.n

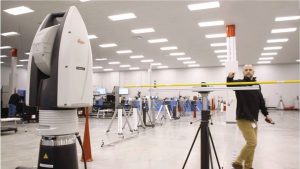

MyCare Portable is available in various packages such as MyCare Essential, MyCare Premium, and MyCare Enterprise. Each offering provides increasing levels of best-in-class service and support such as extended warranties, preventative maintenance, certification loaners, return shipping and more. Enhanced MyCare service packages include a guaranteed 3-day turnaround time for both covered service and annual recertification or a loaner device, wear and tear parts, trade-in lock credits and much more. Customers can also take advantage of the MyCare Rewards program with discounts on SFx Asset Management, eStore purchases, accessories, training, software and hardware upgrades, and unlimited access to on-line training (1 seat per system).

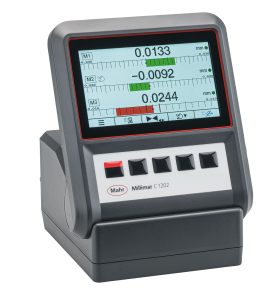

The Millimar C 1202 is user configurable with the use of Mahr's N 1700 series amplifier modules. Modules are available for LVDT inputs in both standard and high-resolution capabilities; pneumatic inputs for air tooling; and input modules for digital encoders. The Millimar C 1202 will allow for up to two inputs and provides the capability of displaying up to three measurement results.
