Inspection & Metrology Equipment

Videos • December 12, 2023

Westec 2023 Booth Visit with ARCH Cutting Tools

ARCH Cutting Tools highlighted its RECON360 service program at its booth during Westec 2023 in Long Beach, California.

Articles • December 11, 2023 • William Leventon

AIO laser marker

Technomark's Graphix laser workstation holds all in a single cabinet creating a small footprint.

Products • November 4, 2023

W640JZ, W643JZ, and W644JZ Wireless Electronic Depth Gages

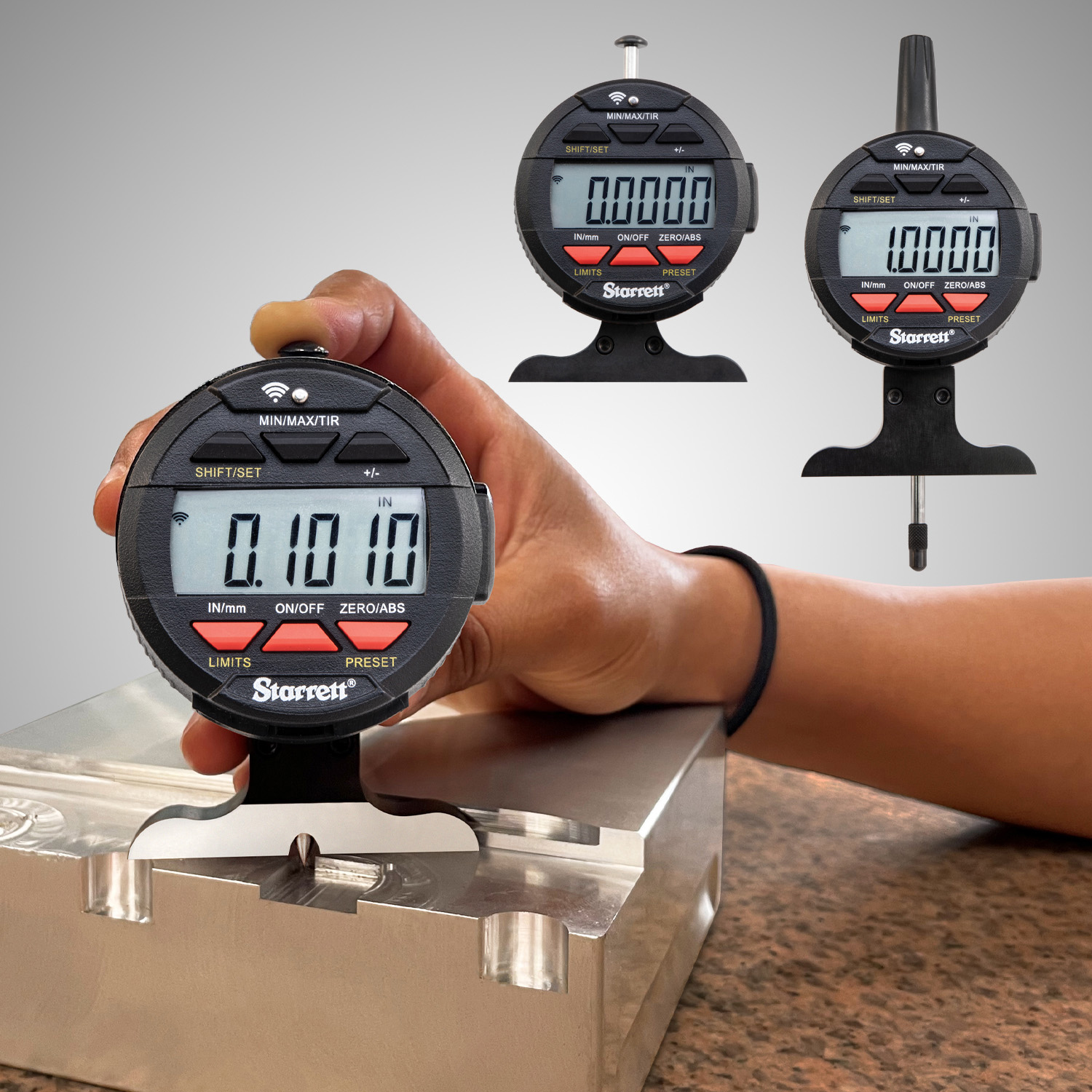

The W643JZ depth gage features a knife edge base and a needle point contact that has been hardened and ground. The conical point which is 1/2" long with a 40-degree angle can be precisely positioned for close work due to a cutout on the knife base. All three of the new Starrett wireless electronic depth gages are accurate to +/- .001"/ 0.03mm, and have a 0.0005"/ 0.01mm resolution. Measurement ranges for each of the gages are as follows: the W640JZ offers a range of 0-.500" (0-13mm), the W643JZ offers a range of 0-.125" (0-3mm) and the W644JZ offers a range of 0-3" (0-75mm).

Products • October 30, 2023

L-703SP Surface Plate Calibration System

The L-703SP System is 30-40% faster than electronic levels, more rugged and reliable, and more repeatable from one tech to the next. In addition, the L-703SP is set up directly on surface plates, so each line segment setup is much easier than autocollimators and laser interferometers, which require floor mounting and touchy setups. This results in 50-60% faster plate calibrations and, unlike these devices, does not require re-taking data if the laser beam is broken.

Products • September 20, 2023

MarCal 18 EWR(i) Digital Caliper

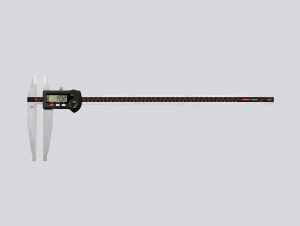

Suited for a wide variety of industrial applications, the MarCal 18 EWR(i) digital caliper alleviates the complexities associated with accurate measurements of large/heavy parts, ultimately enhancing overall measurement precision. The tool is particularly useful for roaming quality inspectors who need to measure parts that are too challenging to be brought to a stationary gaging station/bench. Ideal applications include large gears, driveshafts, and anything substantial in size or weight.

Products • September 12, 2023

Model FX-3

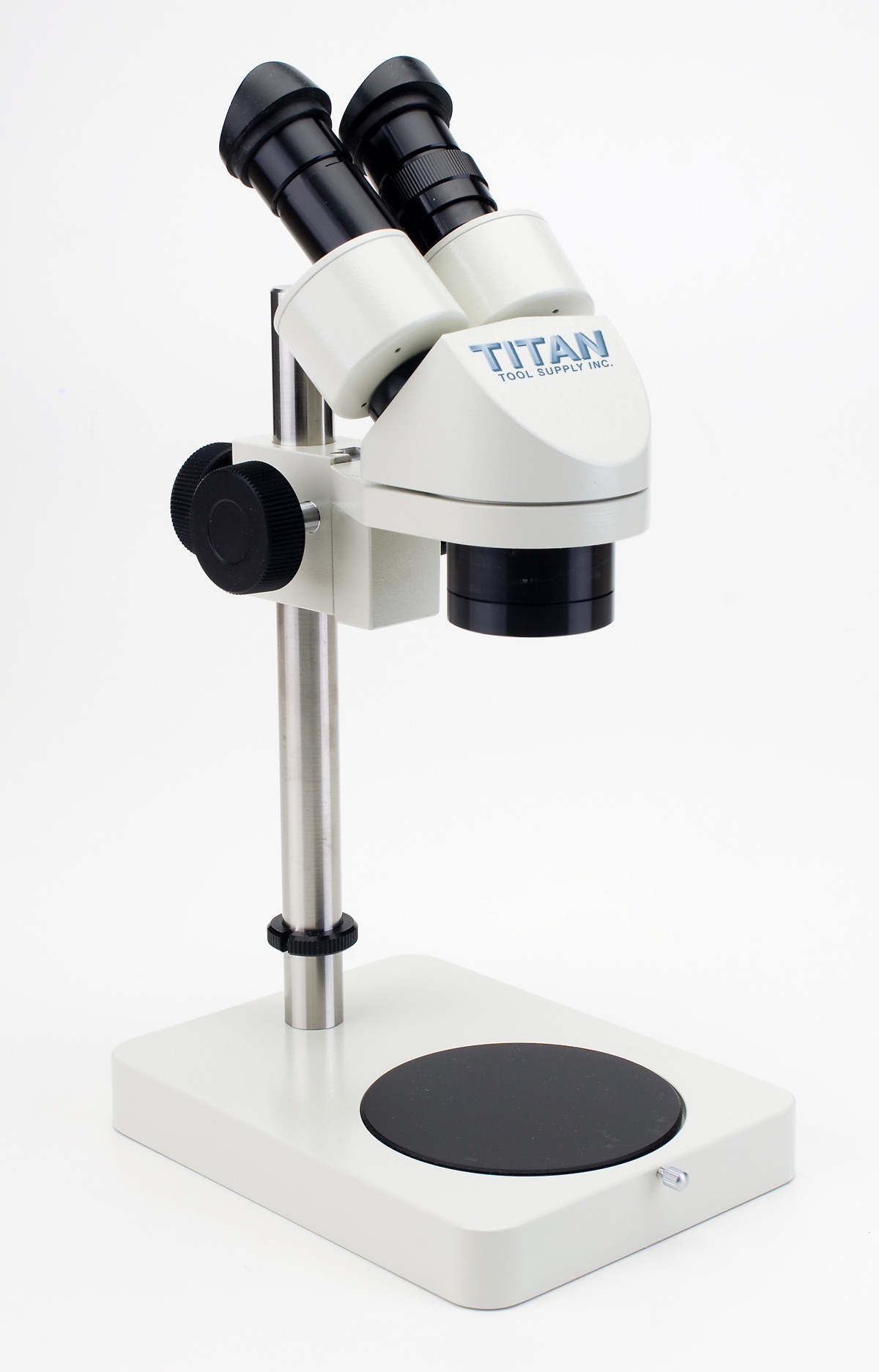

The standard Model FX-3 features a built-in 1X objective lens and extra-wide field 10X eyepiece. All lenses are hard-coated and include built-in color correction for enhanced image quality. Optional objectives, such as 0.5X, 1.5X, and 2X, can be purchased separately for different magnifications, as well as an optional 20X eyepiece and both 10X and 20X crosshair eyepieces. Collectively, these offer up to six unique additional magnification options.

Products • August 29, 2023

Airbrush

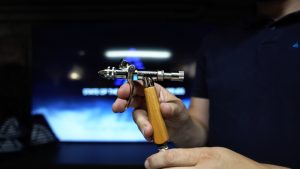

The airbrush is easy to operate and merely requires the flow rate to be set. The airbrush works most accurately at a constant pressure of approx. 1-2 bar which is set individually.nThe airbrush is solid and robust, resulting in a long tool service life. The wooden handle facilitates ergonomic, balanced handling.

Products • August 25, 2023

Renishaw Central

Renishaw Central is a smart-manufacturing data platform that collects, presents, and initiates accurate process and metrology data. The platform connects to measurement devices across the manufacturing process and provides valuable insights that manufacturers can use to analyze, identify, predict, and correct process errors before they occur.

Products • August 4, 2023

6-Axis and 7-Axis Freedom Arm V2

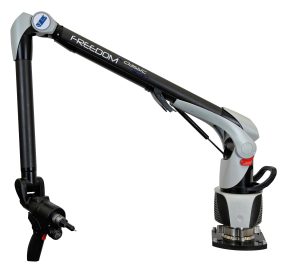

As with the earlier 6-axis and 7-axis arms, the new range falls into three categories, FREEDOM Classic, FREEDOM Select and FREEDOM Ultimate, depending on the level of measuring precision required. Probing accuracy is certified to ISO 10360-12 and functionality is guaranteed up to 40 degrees Celsius. All models are easy-to-use, especially as probes and laser scanners can be hot-swapped without recalibration.

Products • July 14, 2023

DSC 5+

The DSC 5+, equipped with FlexMode functionality, is the first ever DSC capable of measuring in two different measurement modes. This allows users to run DSC measurements to be carried out in either power compensation mode or heat flux mode, therefore optimizing the measurement conditions for the application needs. The optimized measuring cell design is thermally isolated from the environment providing world-class enthalpy reproducibility and cp accuracy.

Products • July 5, 2023

Ultrasonic Leak Detector (ULD)

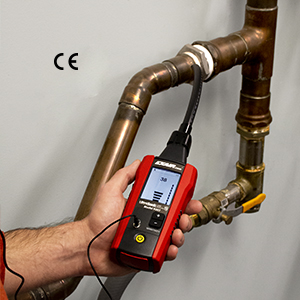

High pressure gases create high frequency turbulence when moving into an area with lower pressure, creating an ultrasonic or "white noise" sound that is beyond the range of human hearing. The ULD can detect these vibrations, creating an audible sound through supplied headphones as well as indicating intensity via front-facing LED display as it moves closer to the leak origin.

Videos • June 30, 2023

Mitutoyo America’s Roundtracer Extreme

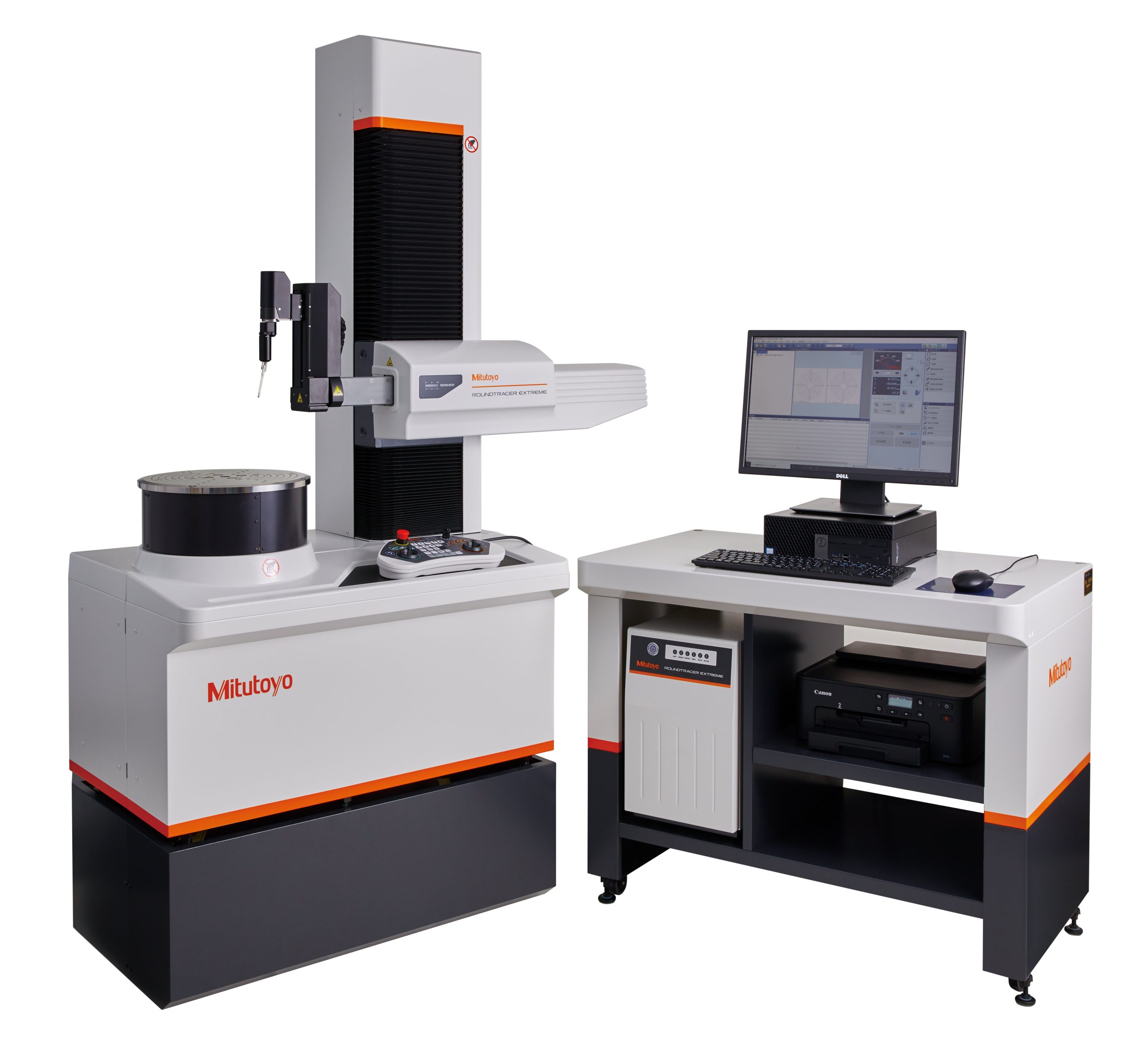

View a video presentation about Mitutoyo America Corp.'s RTX Roundtracer Extreme, which the company designed to provide fast, accurate measurement of workpiece roundess, contour and surface roughness. The video is presented here as a supplement to the Machine Technology column, "Multifunctional Measurer," which appears in the July 2023 issue of Cutting Tool Engineering magazine.
