The basis for this innovative service is a dynamic stiffness analysis of the machine tool. The physical optimization phase (known as the 'tap test') can be accomplished with impulse hammers and accelerometers from Kistler; this is followed by an analysis of the customer's NC program, performed with new software from Productive Machines. All the acquired data is then processed to create a new NC program which, once installed, ultimately leads to better cutting performance, longer tool lifetimes and higher OEE – to name just a few benefits.

Continuously improved by customer input and rigorous usability testing, the new SPECTROLAB S LAS02 features proprietary CMOS+T technology to identify and measure, with high accuracy and precision, all elements in incoming, in-production, and out-going materials as well as in researching new materials. The new analyzer is ideal for primary and secondary metal producers, automotive and aerospace manufacturers, and makers of finished and semi-finished goods.

A Formula One contractor accelerates quality control.

When needing to capture complete measurement data, noncontact 3D laser scanning is available.

The accuracy and simplicity of Vicivision's M2018 Techno measuring machine allows manufacturer better prioritize its time.

When you need to capture complete measurement data on a machined part, noncontact 3D laser scanning is available to provide "The Whole Picture," which is the title of our cover story in the June 2023 issue of Cutting Tool Engineering magazine. Presented here is a video supplement covering the highlights of the Nikon Metrology L100 laser scanner.

When you need to capture complete measurement data on a machined part, noncontact 3D laser scanning is available to provide "The Whole Picture," which is the title of our cover story in the June 2023 issue of Cutting Tool Engineering magazine. Presented here is a video supplement covering the highlights of the Absolute Arm AS1 portable CMM from Hexagon's Manufacturing Intelligence division.

Trenton S.p.A., a manufacturer focused mainly on making parts for machines and tractors used for agriculture, offers a brief testimonial for Vicivision America's M2018 Techno measuring machine. The video, courtesy Vicivision, is presented here as a supplement to the Get With The Program column published in the June 2023 issue of Cutting Tool Engineering magazine.

The durable construction of both L-Series models consists of a long, thin, and rigid stainless-steel tube body. The tube features a lens on one end and a light source (sold separately) on the other. The tube further contains an optical fiber bundle that transmits light from an external light source, thereby illuminating the area under inspection. The image is then transmitted by the fiberscope lens to an eyepiece or camera for remote viewing and diagnostics.

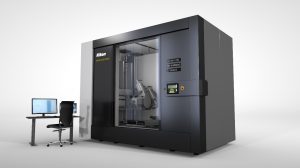

Nikon emphasizes that the VOXLS 40 C 450 is just the first of a next generation of X-ray CT systems of similar construction, featuring a single-piece cabinet, the same metrology-grade manipulator concept, Nikon's unique microfocus X-ray sources, and extensive CT acquisition technologies. The upcoming models will broaden the range even further to provide users with more options that will not only meet their immediate business and technical requirements, but will also help them to identify new opportunities and raise operational efficiency.

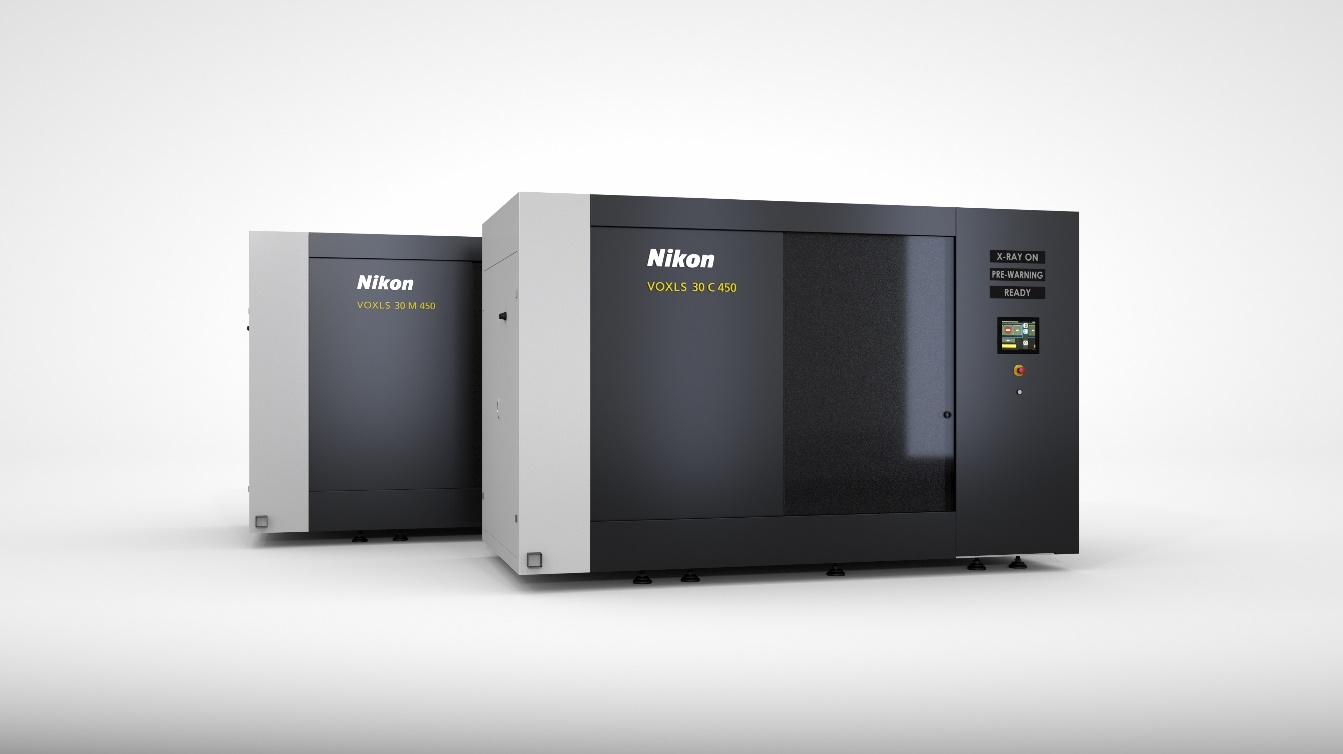

Two variants are available. The VOXLS 30 C 450 is ideal for inspecting tall samples such as a large turbine blade. The VOXLS 30 M 450 is defined by its ability to be equipped with an internal autoloader for holding multiple samples. They may be scanned without operator intervention, freeing up personnel for other duties and facilitating unattended operation overnight and at the weekend, resulting in a big increase in productivity. In combination with external robotic handling and the Nikon Automation OPC UA Interface, both systems are compatible with fully automatic, closed-loop inspection at high speed in a Quality 4.0 production line environment.

Powered by a Nikon 225kV microfocus source, the innovative systems feature the company's Rotating.Target 2.0, which is unique in the industrial sector. It results in high resolution X-ray images to enable even the smallest defects inside an object to be identified quickly, easily, and non-destructively. Speed of operation is enhanced using Nikon's extensive CT acquisition technologies and reconstruction algorithms, making the systems ideal for automated inspection applications on the shop floor.
