Inspection & Metrology Equipment

Featuring a 1:4 zoom ratio, the Titan Tool Supply Model ZMM-1 industrial inspection zoom microscope offers constant focal length, highly favorable depth of field, a large field of view at 15X magnification, and a higher magnification with smaller field of view at 60X as standard. When used with the optional extra 20X eyepiece, the Model ZMM-1 can additionally perform reliable and accurate remote visual inspections of a workpiece over an expanded magnification of up to 120X –all without the need for a change of lens.

The density determination solution is a metrological system which has been developed for the rapid and highly accurate density determination of components, and has a particular significance when analysing AM-produced parts. Porosity in AM parts can be a problem because it can weaken the mechanical strength and stability of the parts, reduce their durability, and make them more susceptible to failure under stress. Porosity can also affect the thermal and electrical properties of the parts and make them less resistant to high temperatures, corrosives, and other environmental factors.

The results of a single dispense of up to 12 channels are calculated in under one minute. The unique and innovative XPR105MCP tests each pipette channel individually on the same load cell to ensure equal measurement performance. The load cell is protected from any spills to ensure lifelong performance.

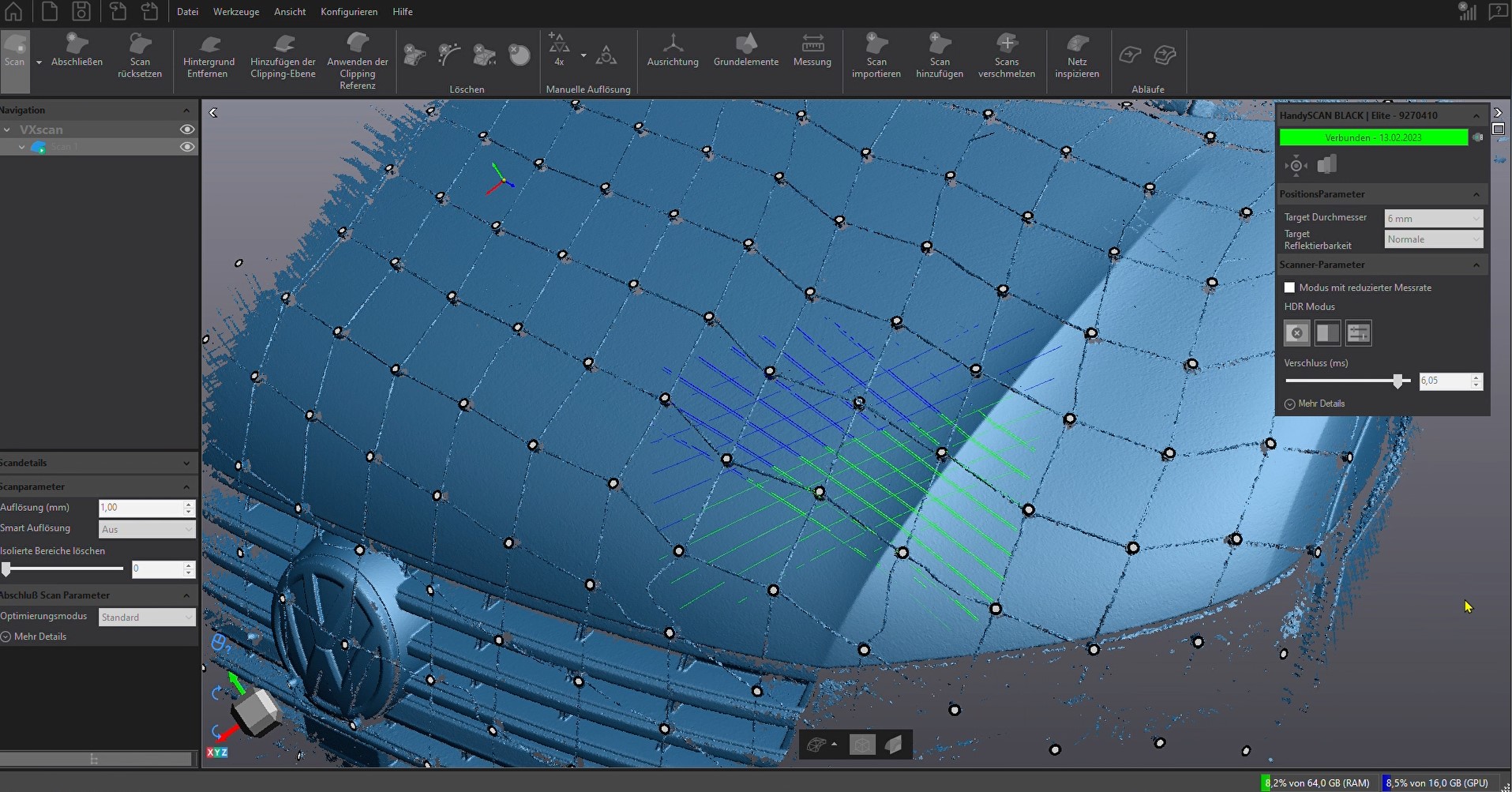

The measurement targets are distributed uniformly at intervals of approx. 100 millimetres across the entire Target-Net. The Target-Net itself measures 1500 x 2500 millimetres and has in total approx. 300 measurement targets. Thanks to the high measurement target density, several scans can be performed very quickly from different perspectives.

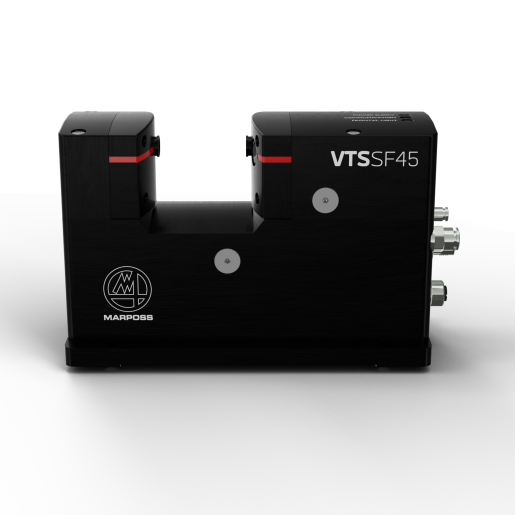

The VTS SF-45 acquires a variety of tool dimensions in a single instant using the principle of shadow projection where an illuminated objects projects its shadow onto the camera. These measurements include tool length, static and dynamic tool diameter, the tool run-out and cutting-edge radius. With a resolution of 0.1 µm, the VTS enables measurement of tools with diameters as small as 10 µm with repeatability of 0.2 µm, providing a higher level of accuracy than touch probes or lasers in small applications.n

Mx 9.1 software extends Zygo's collaborative metrology software with Asphere+ Analysis functionality, providing a common toolset to explore aspheric surface data obtained using any instrument. Best-fit prescriptions can be obtained for a wide range of surface types, and the 3D deviation between part and design can be examined and exported for process control feedback

With the use of the PM controller, several times stiffness is achieved compared to solutions using capillaries. This produces extraordinarily high stiffness with respect to radial, axial and moment loads. With the help of extensive computer programmes, an optimum in dimensioning is achieved regarding dynamic loads, so the best-possible damping is achieved. By precisely determining the limits of use and loads, an optimum in functional reliability is achieved.

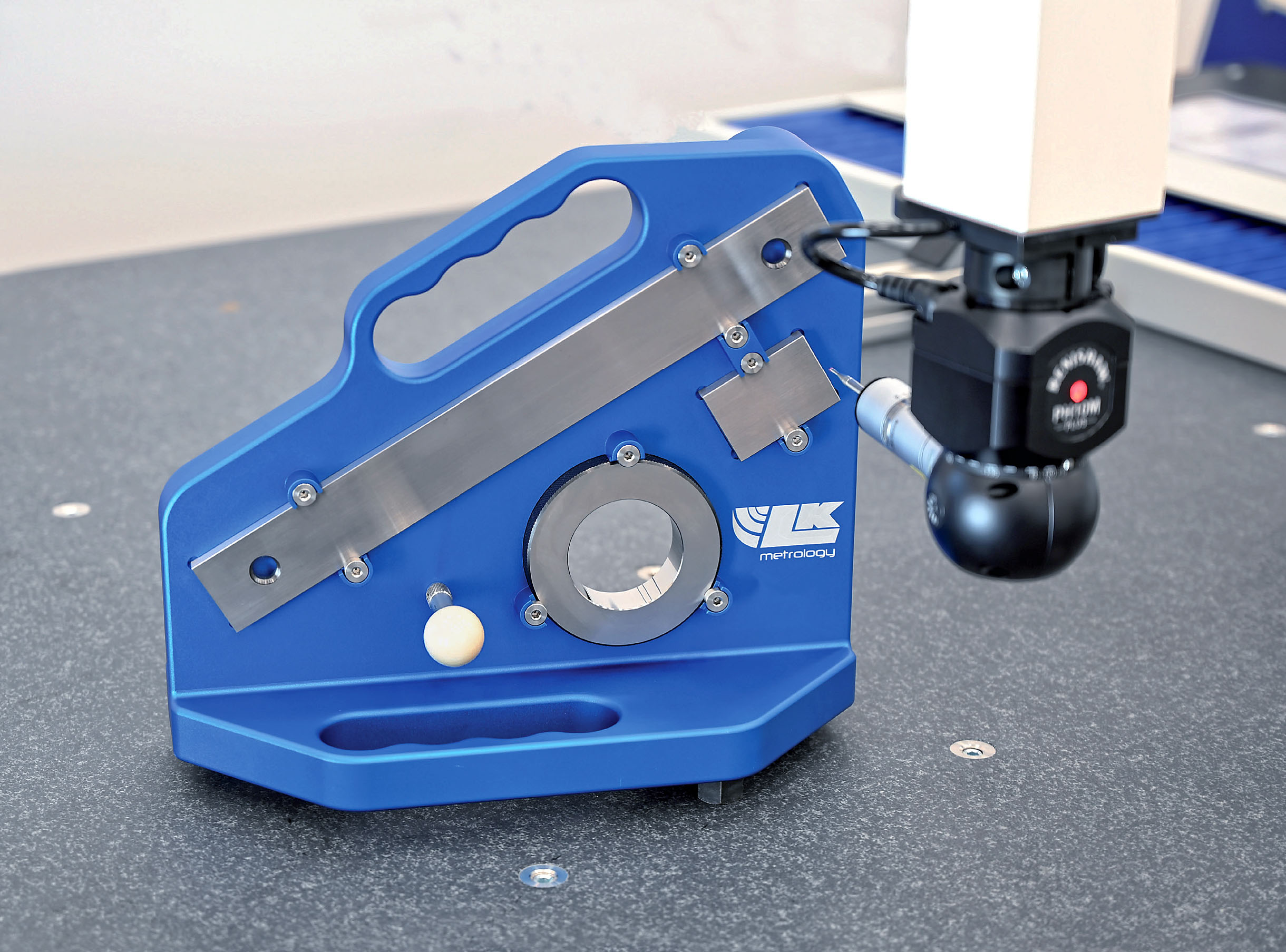

The gage is supplied in a carrying case with a program on a USB drive that runs in LK's CAMIO measuring and reporting software. The program includes DMIS measurement and alignment routines for bridge and horizontal arm CMMs, allowing the CCG cycle to run seamlessly on LK machines. However, it is easy for operators of other 3D measuring platforms using different software to program a probing cycle around the gage to check for machine accuracy.

Both bundles include API's Radian Plus Laser Tracker, which is known for its high accuracy and long-range measurement capabilities. Also available are API's vProbe, a high-precision, non-contact measurement probe that is ideal for use in tight spaces and hard-to-reach areas or iScan3D, a high-speed handheld scanner with flexible probe locations for all part inspection or reverse engineering applications. Together, these products provide a complete measurement solution for a wide range of industrial and manufacturing applications.

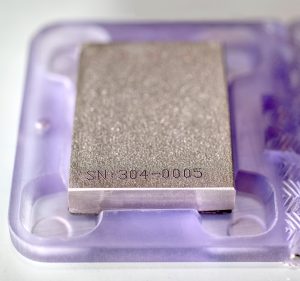

The blast specimen created by the Guyson Institute of Standards determines a specific Ra value on a calibrated profilometer which will enable the user to correctly match that Ra Value on a product finish. All previous Ra measurements up to this point, are inconsistent because there was no scientifically certified specimen to determine the gloss value of a non periodic finish.

New CMM from LK Metrology doubles company's parts measuring volume

Leverage Internet of Things integrations to help tracking and control parts
