The height of the frame is based on the size of the part. The components present in the set permit a maximum set-up height of 300 millimetres. With add-on sets, the frame height can be extended in increments of 100 or 200. The part to be measured is held within the frame by hinged brackets.

The IDC and IDF series Digimatic Indicators have new designs and functions. Improvements include higher resolutions down to 20μinch / 0.5 μm, a built-in Calibration date warning, larger LCD and "analog" bar, and new S1 output (bidirectional communication) which allows settings to be changed through the new USB ITPak 3.0 software (free and paid versions).

The Acoustic Performance Measurement (APM) system is capable of monitoring the parameters of ultrasonic frequency and power in-line at each processing station and for each batch. Special directional microphones are used for this, which are placed in a fixed position at the edge of each tank, and directed towards the centre of the bath surface. Thus, measurements are carried out without any movement or contact, ensuring reproducible results and enabling them to be precisely assigned to the batch concerned. Analysis, evaluation and storage of the data are carried out by the software of the innovative measuring system.

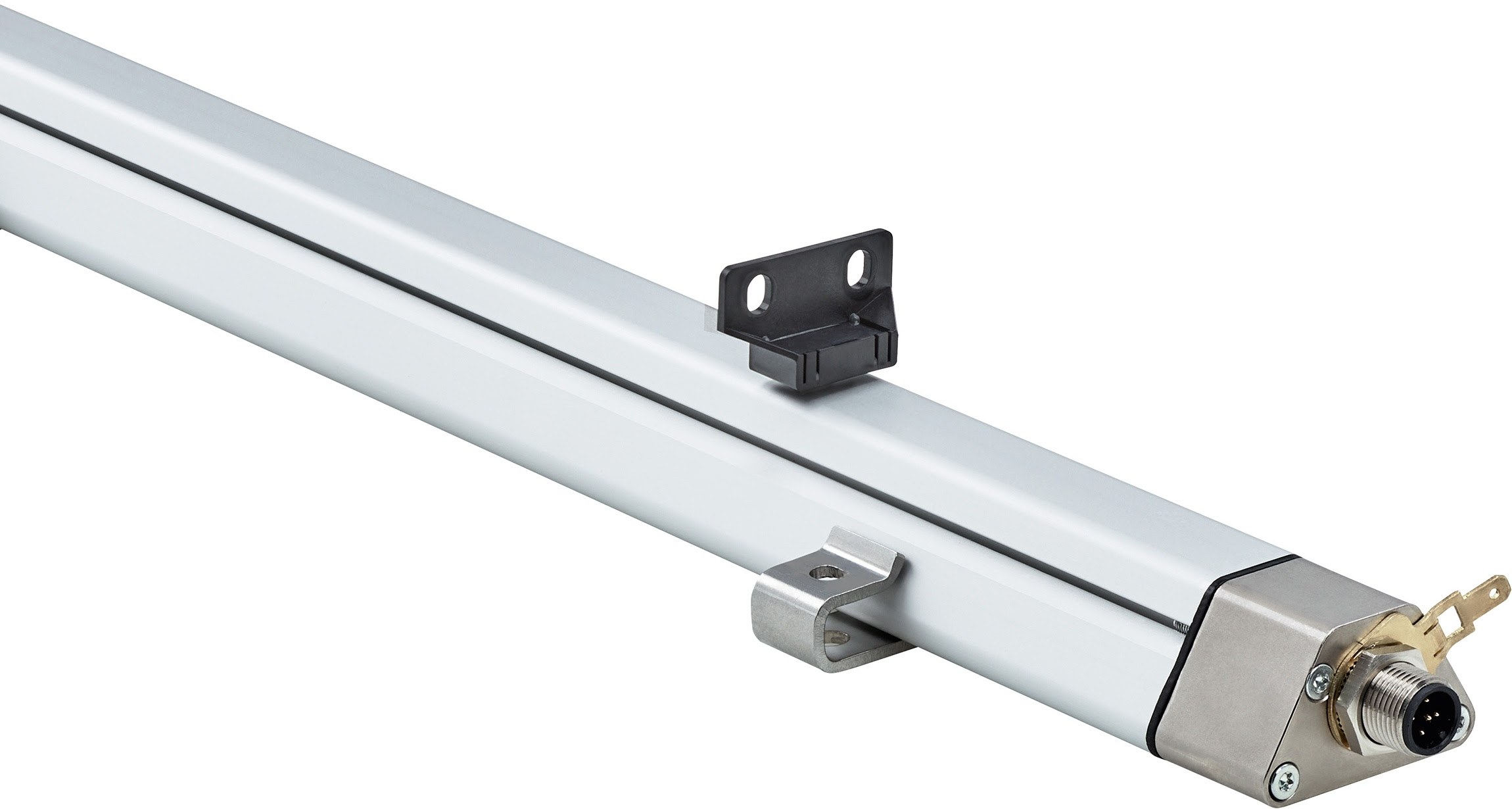

The DAX® linear encoder is suitable for measuring positions in many applications, including injection molding machines, presses, automotive machinery, printing and packaging machines, wind, hydro and solar plants, in wood processing, or medical technology.

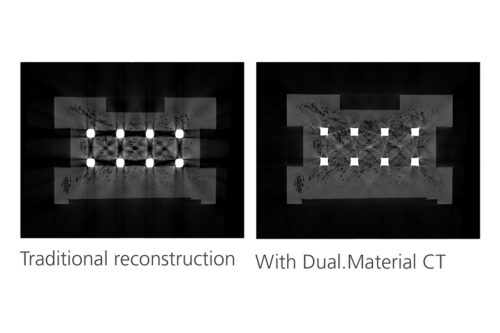

As it is automated, reconstruction by Dual.Material CT is highly repeatable from component to component and does not require advanced knowledge of scanning techniques when inspecting assemblies comprising two materials of different densities. QC productivity is raised by enabling better visualization and more accurate definition of defects (on the surface or inside a component) in a fraction of the time taken by traditional CT image reconstruction. The high-speed scanning, and the fact that no manual data editing is required thanks to the new software and automated part handling, enables fast and automated quality control of dual material assemblies in a production environment, consistent with the requirements of Quality 4.0.

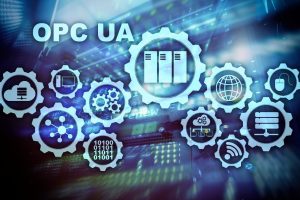

Nikon's alignment with the industry-standard OPC UA communication protocol reaffirms its dedication to developing fully automated, non-contact, X-ray CT quality control systems for the shop floor. There is a growing, industry-wide trend towards using this technology for feeding back data in real time to optimize production line operation – the goal being zero defects. X-ray CT is especially relevant, as it is able to inspect and measure the interior of components non-destructively as well as the exterior.

A spray with which workpiece dimensions and colour values can be digitised in one scan: AESUB transparent. The workpieces are sprayed uniformly with AESUB transparent from a distance of 15 to 20 centimetres. After just a few seconds, a matt, transparent layer is generated on the workpiece's surface. In addition to capturing the surface contours, optical scanners can simultaneously capture the colour values of the object being measured.

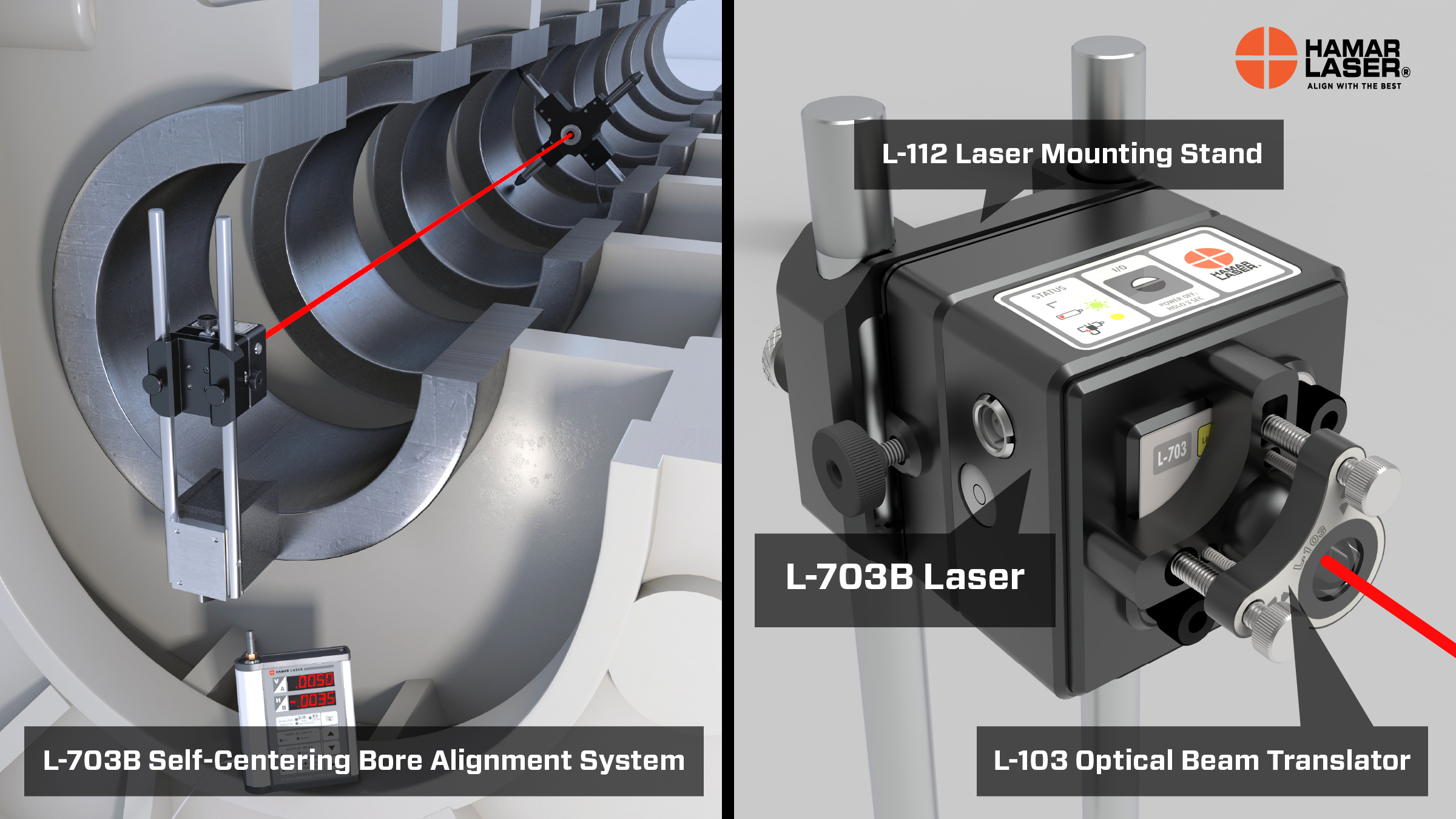

Hamar Laser's L-703B Self-Centering Bore Alignment System makes bore alignment easier and up to 75% faster than competing systems. The new L-703B Laser replaces the L-705 Laser for applications where the laser is mounted externally. Smaller and lighter than the L-705, the L-703B works with Hamar Laser's patented, self-centering targets that require only one measurement per bore. Applications include engine blocks, compressor bores, cylinder bores, shaft bearing bores, stern tubes and more.

Swissbit's S-600 series is the first range to incorporate the new Hyperstone S9 NAND Flash Controller, explicitly developed for use in industrial applications. Unique firmware features guarantee an extended lifetime of safe and reliable storage of even the smallest data. First-class data preservation and data integrity is delivered in all situations: in high temperature conditions, through non-continuous writes, or sudden power failures.

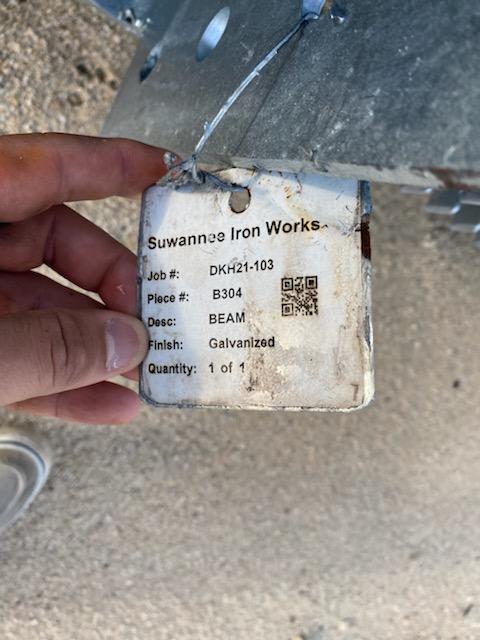

KettleTag PLUS EZ is a proven solution that requires NO extra steps. Fabricators and galvanizers can print this tag, attach it to their steel, and read the barcode on the tag after the steel has been galvanized. The days of using laminators and cutting tags apart are over, which makes the identification process more efficient for our customers.

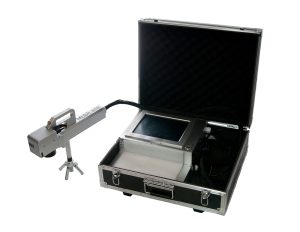

Featuring a powerful, 30-watt fiber laser and a large, 100 x 100 mm marking window, MobiLase® Battery delivers fast and durable laser markings on nearly any material ranging from plastics to steel to precious metals, among many others. The 7-lb. handheld applicator is equipped with a trigger to start marking plus two bracket options for ease of marking various part shapes.

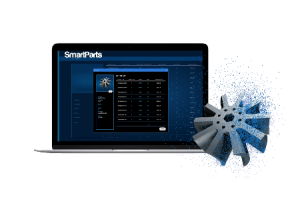

Although a variety of part traceability solutions are available for traditional manufacturing processes, including bar coding, laser etching and adding serial numbers and radio frequency identification, those technologies are not particularly efficient or effective for additively manufactured parts, which tend to have complex geometries and can be microscale, according to Cody Burke, co-founder and COO of SmartParts. To overcome those challenges, SmartParts reports that it developed an integrated solution that combines advanced material taggants, hardware and software to connect manufacturing data to additive materials and parts.
