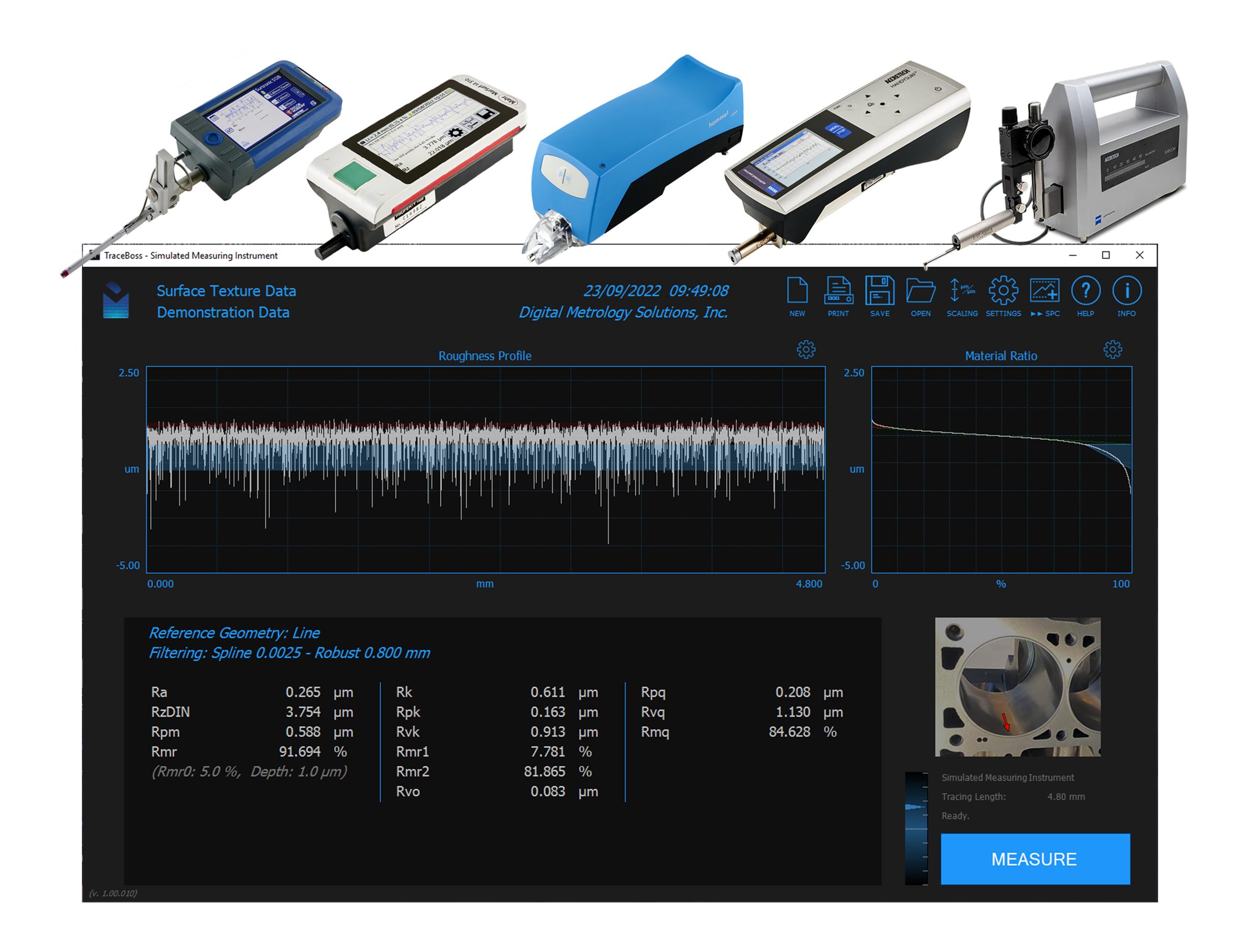

The TraceBoss software interfaces with most portable surface roughness gages via a USB connection. One click in TraceBoss configures the gage, initiates a measurement, and presents the results and graphics full screen and in high resolution. The software display is optimized for the highest visibility in shop environments.

The laser profilers project a laser line on the gear at a specific angle, collecting data to generate the entire Z-X profile through an image sensor placed behind the optical receiver. The gear is then quickly rotated 360° to collect data points from movement along the Y axis, which is combined with the Z-X profile to create a complete 3D reconstruction of the part, made possible through specific software algorithms. The system then executes the requested measurement and inspection tasks. Line operators can easily review images and navigate to the desired level of detail to identify any anomalies.

The system comes with a choice of two different touch probes. The UWP45 is a 45mm diameter touch probe ideal for multi-axis machining centers and compatible with the Marposs T25, TT25, TT30 and T25P probe ranges. The UWP60 is a 60mm diameter touch probe that is suited for use on large scale workstations and vertical lathes. It can be configured for use with Marposs T25, TT25 and T25P probes with extensions up to one meter in length.

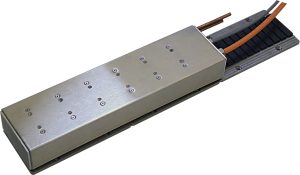

LMX linear motors comprise a metal track with multiple embedded rare earth magnets, and a coil assembly supported by a customer-supplied guideway. A key feature of the motors is that they are designed to operate with a comparatively large air gap of 1 mm, to reduce the impact of mounting tolerances on performance characteristics. For most machine tool applications, the track is held stationary and the coil assembly is free to move – but converse mounting arrangements are also practicable, with similar performance attributes.

While the previous FormControl version (without the "X") was based on a scenario in which a machine operator works at a machine with the laptop and processes the measurements at the same time, the trend today is moving toward automating such processes, meaning this 1:1 relationship is now fairly rare. Genuine automation of workpiece measurement also opens up completely new areas of application. That is why the goal with FormControl X was to enable real measurement automation on the basis of a modern client-server architecture – this means moving away from pure logging and towards process integration and automation with the help of the measurement data collected by the software.n

MarSurf CD 140 AG 11 features an automated calibration routine for probe arms and a flexible workpiece holder that makes it easy to handle. Automatic tracing force selection assures the proper force is used when replacing several stylus tips. Operators can choose from a comprehensive range of clamps and workpiece holders, and this versatile machine can also be used to obtain roughness measurements (Rz>2µm).

ZOLLER Inc. President Alexander Zoller highlights new tool heat shrink technology and more while Matt Brothers, Industry 4.0 Tech Center manager, describes a new measuring program for presetting skiving cutters.

ANCA USA General Manager Russell Riddiford visits with various ANCA experts during IMTS 2022 to discuss several of the machines on display, including the new ANCA Integrated Manufacturing System (AIMS).

Made for large, heavy parts with complex dimensions and tolerances, FlexPoint 12-Series measures volumes up to 1200 x 3000 x 1000 mm. The VersaFlex multisensor head is a patented sensor array that offers up to three simultaneously available sensors on one articulating head: OGP SmartProbe fully telecentric optical video probe, SP25 scanning probe, and the interferometric laser TeleStar Probe.

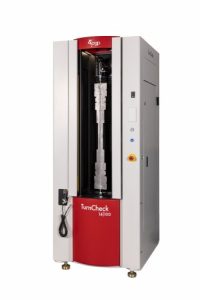

TurnCheck systems are precision optical instruments that measure shafts, cylinders, and other turned, ground, or extruded parts in the most demanding shop floor environments. The fully telecentric large field of view optics combined with highly collimated light at a constant wavelength results in a crisp, uniformly magnified image with no edge effects or exclusion zones. TurnCheck systems scan and measure all points and features automatically, handling the full range of dimensions and tolerances found on shafts and cylinders.

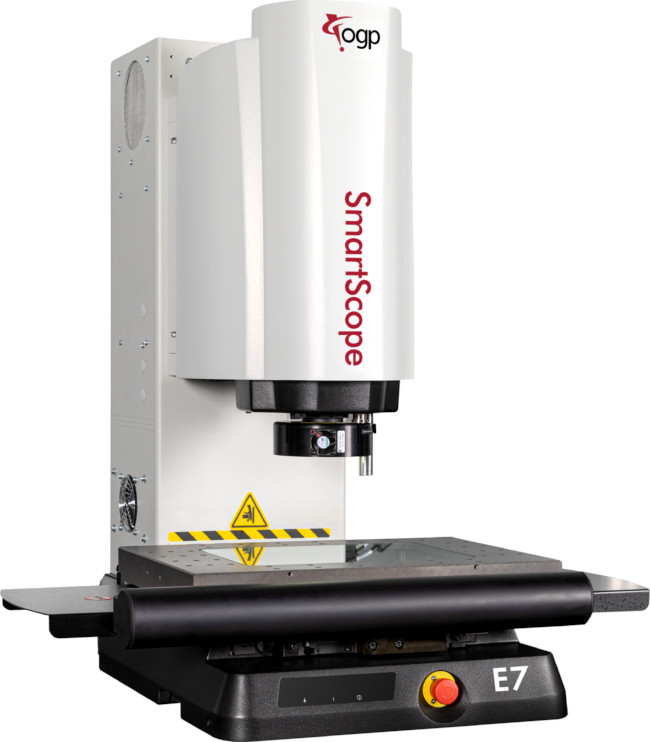

OGP has reimagined the trusted SmartScope system to be accessible for all skill levels and budgets. SmartScope E7 features the brand-new fixed lens IntelliCentric optical system, a fully telecentric optical system that provides a super high-resolution image perfect for video edge detection. The digital zoom allows for instantaneous magnification changes, while the standard all-LED lighting system provides illumination from all angles.

ShapeGrabber 3D Laser Scanning systems are metrology-class machines that combine powerful laser and camera technology to capture up to 1.5 million data points per second. At the heart of each ShapeGrabber system is a high-resolution scanhead offering dynamic range that delivers fast and accurate measurement of parts in a wide variety of materials, colors, textures, and finishes.
