CKB Boring Heads

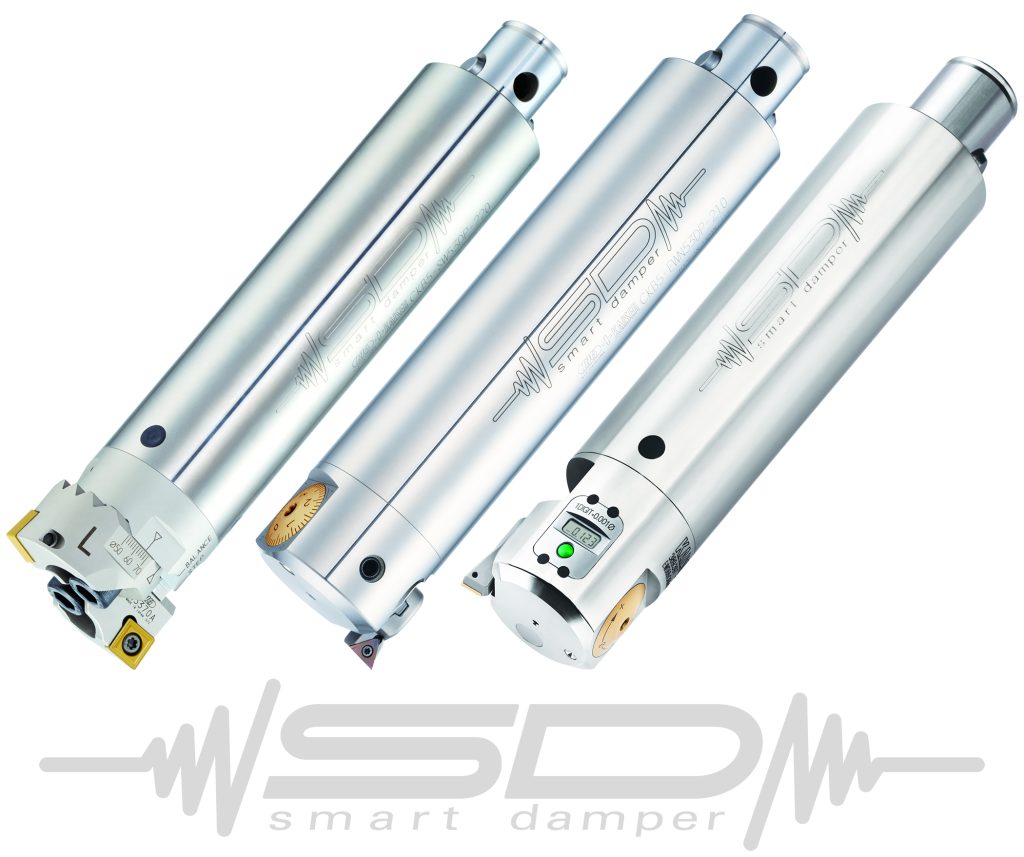

BIG KAISER announces three additions to the Smart Damper family of antivibration technology: EWN & EWD finish boring heads and SW rough boring heads with the CKB modular connection. Smart Damper incorporates a passive damping mechanism that functions as a counter action by way of high resonance friction action. The patent-pending system’s damping capability minimizes the effects of high frequency oscillations, absorbing vibration effectively and allowing higher machining accuracy, according to the company.

The modular CKB connection allows for an array of standard shanks and extensions to be adapted with the heads to create “custom” tools to extend over 16 inches, maintaining damping near the cutting edge and managing vibration in long-overhang setups.

The heavy-duty SW twin-cutter head with integral Smart Damper, for rough boring holes 1.614” to 4.331” in diameter, efficiently creates deep bores into iron or steel workpieces quickly, quietly and most importantly without vibration or chatter. This means that faster machining and higher productivity rates are possible.

The SW Smart Damper can operate at cutting speeds of up to 660 sfm in steel at a length of 8xD without chattering. This is four times faster than the 165 sfm maximum chatterless cutting speed attainable with the standard SW heads.

Moreover, the SW Smart Damper can perform two roughing operations without needing to change any components due to individually adjustable insert holders with a unique design element. Balanced cutting for high speed operations where inserts are of the same diameter and length, and stepped cutting for high stock removal where the insert holders are simply reversed to create diameter and height offsets.

For finish boring, tests have shown that with the high-precision mid-size diameter boring head types EWN and EWD with Smart Damper technology, deep holes free of vibration can be bored with dramatic improvements in time and accuracy. For example, with a projection length of 16 inches and working in steel, a cutting speed of 1,500 sfm and feed rate of 6 ipm can be achieved.

The EWN analog heads feature .0005”/diameter setting accuracy, with .0001”/diameter possible with Vernier precision. EWD digital heads feature Ø.00005” setting accuracy, and have a seal rating of IP69K. The overall program between three head sizes covers the diameter range of 1.614” to 5.906”. Both head types are coolant-through, and thanks to three different insert holders per head, a wide range of diameters can be processed on each head. For example, between 2.677” and 5.906” for the EWD 68 Smart Damper.
