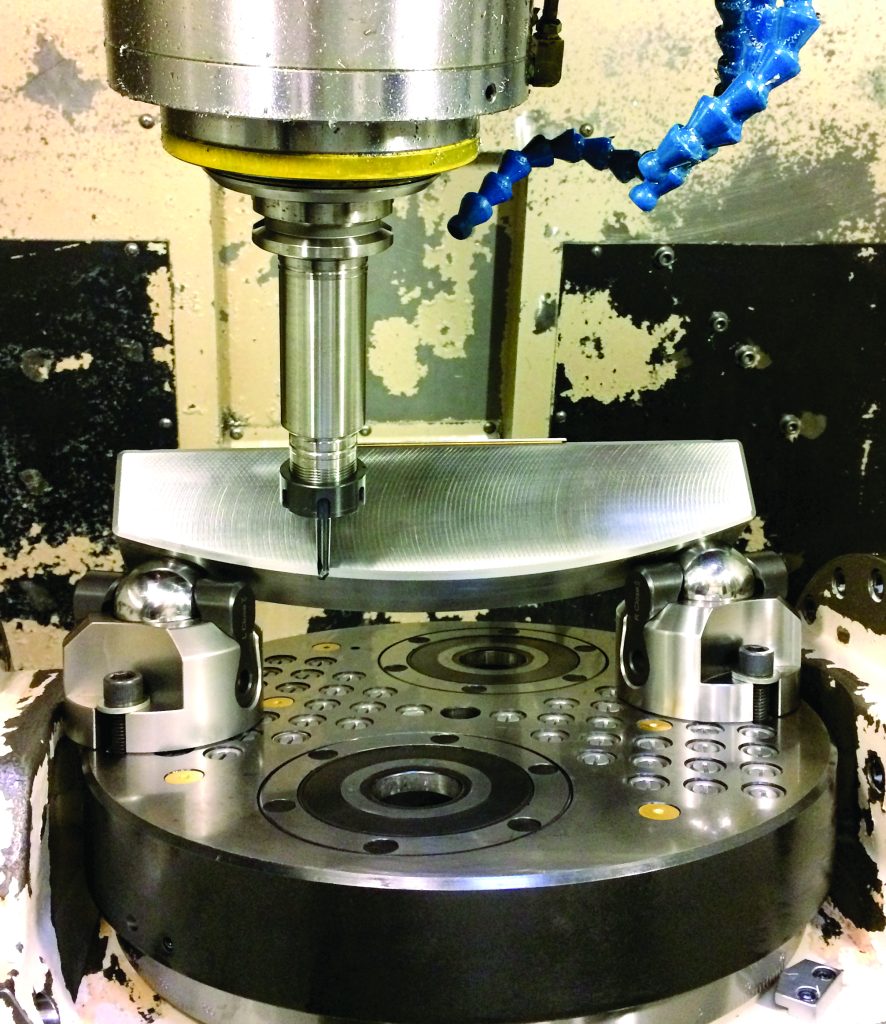

BIG KAISER’s UNIFLEX system is a 3D zero-point clamping system designed to allow parts with curved surfaces to be held rigidly for various operations and be adjusted to different height requirements. The UNIFLEX system is available in two diameters: 25.4mm and 50mm.
BIG KAISER is accelerating workholding technology to match the level of the ever-more popular and accessible multiaxis machining. The UNIFLEX system is composed of a clamping ball and collar that are attached to the underside of a part or fixture. The clamping ball is a hardened steel ball of the same type found in heavy-duty industrial bearings. This material prevents peening or denting of its surface with normal use.
Once the clamping ball and collar are attached, the part and fixture are then lowered onto either a clamping base or a clamping extension. The clamping collar is then rotated to tighten the six bearing balls on to the main ball. If the part or fixture is warped or needs to be set at an angle, the clamping ball can pivot up to 15° of the vertical with 18mm of height adjustability or 40° with 20mm of height adjustability.
The UNIFLEX System 50mm has an increased clamping ball size, which allows it to work with larger, heavier, uneven parts and provides more rigidity. Balls are offered in two types: location type, which uses a 25mm-dia. location collar, while a grip type has serrations to grab the part. Grip type is not to be used on finished surfaces.
This system provides vibration-free holding of the part when multiple clamping is used and has low-wear against tools. It also can stabilize the workpieces without obstructing access to the top and sides of the part. The two sizes available enable users to work with small or large workpieces like weldments and castings.
The larger diameter cutter and new lengths both boost the Fullcut Mill FCM BBT line’s already-considerable versatility, allowing machinists to tailor their tool selections for many different applications. The BIG-PLUS BBT shank products are compatible with both BIG-PLUS and existing BT spindle…
The BIG CAPTO C3 square holders for turning applications come in left and right orientation. The turning application holders—C3-180-BH16R-2058 and C3-180-BH16L-2058—are mono-block holders. Their insert clamps are tough and reliable, adding on to the already inherently high rigidity of mono-block…
The Mega Double Power Chuck system features an expanded contact diameter of the nut to the flange, which provides the highest rigidity—as if the chuck and nut were one solid piece. This superior rigidity ensures heavy duty machining without chatter.
The Base Master lineup is used with all types of machines and materials, including non-conductive cutting tools, workpieces and machine tools. Quickly measure workpiece offsets, tool lengths and cutting edges with zero risk of damage or breakage at submillimeter levels when needed.
The SU Type has a length of 235mm and rubber bellows. The larger MU Type is 360mm in length and has a reinforced ball joint with a large collar. Both use serrated washers instead of flat washers to reduce slippage and increase stability of the center joint.
The Model SDF57 assembly has an outside diameter of 2.83" and allows users of 3" face mills to access up to 19.68" of reach, the longest tool assembly in the industry using standard components. Face milling components used in construction equipment, aerospace and oil/gas industries…
To minimize machine downtime and provide operator safety, these Hydraulic Chucks use a simple hex wrench that requires only two to three turns for both clamping and unclamping. Tightening is complete when the clamping screw hits the bottom; controlling tightening torque is not needed. Once a…
The SW BIG CAPTO Rough Boring Head makes it possible to perform rough and finish boring processes seamlessly with the finishing heads it has offered for years. BIG KAISER currently offers the widest range of rotating BIG CAPTO tooling of any provider.
The Chip Blower automates in-machine cleaning of coolant and chips by delivering high-volume air flow with spindle rotation. When not in use, the Chip Blower fits easily into any automatic tool change system for vertical, horizontal or multi-tasking machining centers. The Chip Blower can be used…
BIG KAISER’s modular CK/CKB system allows for versatility in the length of tooling combinations, up to a maximum of 10 times diameter and can run on nearly every major spindle interface. All tools are coolant-through and have three different insert holder options per head size. The tried-and-true…
