Solid-carbide drills for deep-hole drilling

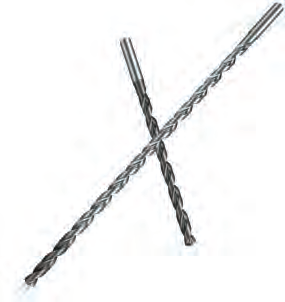

Sandvik Coromant Co., Fair Lawn, N.J., (www.sandvik.coromant.com/us) introduced its CoroDrill 861 solid-carbide drills for deep-hole drilling 12 to 30 times diameter without pecking. Featuring advanced flute geometry, the drills produce small, manageable chips.
The tools’ chip management, combined with a point geometry that reduces thrust forces and a double-offset margin geometry, helps provide the high stability necessary for drilling deep holes, according to the company. The edge preparation protects the cutting edge from premature chipping and flaking. Using a high-precision chuck, IT8 to IT9 is the achievable hole tolerance in steel, stainless steel, cast iron and nonferrous metals. Tool ports deliver coolant directly to the tip of the drill, even at deep drilling depths. The drill is also capable of producing cross-holes and holes in angled faces.
In a customer performance trial, using a 0.406 "-dia. CoroDrill 861 for horizontal drilling operations in alloy steel produced good results, the company reported. Drilling to a depth of 5.5 " (14 times diameter), the tool achieved 60 percent higher productivity than a comparable competitor’s drill in 30 minutes of machining time. The feed rate increased from 22 ipm to 36 ipm, resulting in a drilled length of 90 ', compared to 55 ' for the competitor’s drill, according to Sandvik Coromant.
Milling cutter for difficult-to-fixture workpieces
Walter USA LLC, Waukesha, Wis., (www.walter-tools.com/us) has expanded its Xtra•tec F4045 milling cutter line with a new medium-pitch tool for use on lower horsepower machines and for difficult-to-fixture workpieces.
Stable machines, workpieces and clamping arrangements are required for maximum cutting rates. However, sometimes feeds and speeds need to be scaled back because workpieces with complicated shapes do not always permit rock-solid clamping. That’s where a tool with medium pitch comes in. The medium pitch allows the tool to deliver optimal performance in conditions of limited stability.
The milling cutter’s other features enable it to boost productivity in different applications. These features include negative-shaped inserts with 14 cutting edges, seven per side. The inserts are pressed with a positive rake face, which allows for freer cutting geometry for high cutting volumes in lower horsepower machines. Also, its insert clamping system locks the inserts securely in their seats. The clamping wedge pivots to the side after just a few turns of the clamping screw, allowing rapid insert change, according to Walter. Three geometry shapes (stable, universal and easy-cutting) enable adaptation to a range of different applications.
Facemills for roughing to semifinishing
Iscar Metals Inc., Arlington, Texas, (www.iscar.com) has introduced its Helido S890 FSN line of right-hand indexable facemills for roughing to semifinishing, primarily when cutting cast iron and steel components.
The facemills have an 88º cutting edge angle (2° lead) with eight helical cutting edges, which can be used for DOCs up to 9mm. The facemills are available in diameters from 50mm to 160mm in coarse- and fine-pitch configurations. Every cutter body features coolant holes directed to the cutting edges. The inserts feature a cutting geometry with positive rake, which ensures smooth milling with soft entry into and exit from the material. The facemills work with general milling applications, especially those requiring machining close to shoulders or fixture constraints.
Cutting tool for square-shoulder milling
Seco Tools Inc., Troy, Mich., (www.secotools.com/us) offers an advancement in square shoulder milling with its Turbo 10 cutting tool for most roughing, semifinishing and finishing operations.
The cutter is for slotting, contouring, helical interpolation and ramping with cutting diameters from 0.625 " to 4 " and a maximum DOC of 0.354 ". The Turbo 10 employs a coated, prehardened cutter body with two pitch configurations for achieving tight tolerances and high reliability. Mounting types include cylindrical, Weldon, arbor and Combimaster. With strong, highly positive geometries, optimized edges, a range of carbide grades and two corner radii, the inserts for the Turbo 10 offer maximum levels of adaptability, accuracy and reliability, the company says. Also, inserts can be set to true 90° cutting.
Carmex adds to CMT vertical thread milling line
Carmex CMT, Richfield, Wis., (www.carmexusa.com) has added C10 (10mm diameter) and C25 (25mm diameter) inserts and toolholders to its line for vertical thread milling.
Available in a variety of thread forms and groove widths, the inserts, which are equipped with multiple and spiral flutes, deliver short cycle times, low cutting pressure and smooth cutting operation, according to the company.
Threading tools for all materials in a range of sizes
The Bass line of HSS machine taps and roll form taps from Komet Group, Schaumburg, Ill., (www.komet.com) is the latest addition to the company’s line of threading tools.
The tools thread all materials and are offered in a range of sizes. In partnership with Bass, Komet has developed a stocking program to offer its customers a complement to its Jel brand of solid-carbide and PCD threading and milling tools. The Bass HSS-E and HSS-E P/M-grade machine taps and roll form taps reportedly enhance performance for low- to medium-volume production in all industries.
