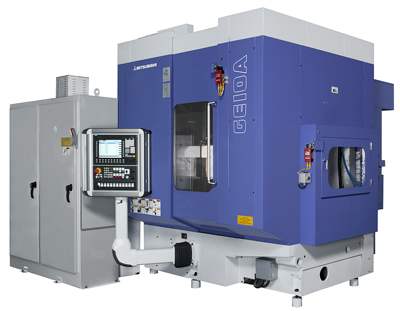

GE10A Hobbing Machine

Mitsubishi Heavy Industries Ltd. has completed the development of a new model in its best-selling "GE series" of dry-cut hobbing machines. The GE10A is ideally suited to mass production of small-diameter gears of the kind used in vehicle automatic transmission systems. MHI expects to market the GE10A primarily to automakers in North America.

The GE10A can accommodate gears with diameters up to 100mm. Radial and axial travel speed are both 20,000mm per minute, double the speeds of earlier products; the higher speeds have been achieved through the adoption of direct drive motors in the main spindle and table. Workpiece changing time has also been shortened by use of a high-speed loader, reducing idle time to 2 seconds, less than half the idle time with current models. For outstanding machining efficiency, the cutting length of the hob has been extended to 300mm and the tool's service life has been increased 1.7-fold. Idle time has been reduced by the incorporation of features including: a structure enabling simple set-up changes, without use of tools, of the grips used for handling workpieces, achieved through the adoption of a boltless design; and automatic tool changes in 90 seconds at the push of a button (optional).

In addition, the GE10A machines can be used with CNC control units made by Siemens, which are widely used on production floors in the U.S. and Europe; this now offers a choice between this German brand and CNCs made by FANUC. As a measure against thermal displacement, cooling mechanisms have been incorporated into the main spindle and table, enabling high machining precision.

North America is undergoing a trend toward multimode automatic transmissions, and this is resulting in increased numbers of sun gears located at the center of the planetary gear unit as well as the pinion gears that make up planetary gears. Gears are also becoming increasingly smaller and higher in precision. In light of these developments, MHI will leverage its broad lineup of dry-cut hobbing machines for everything from rough processing to finishing to propose new solutions for mass-producing the smaller and higher-precision gears demanded on automatic transmission system production floors.
